apollo -Knotless Anchor

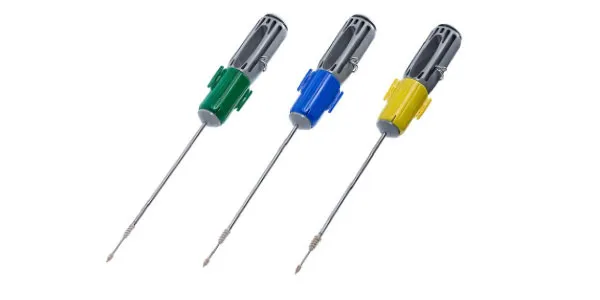

The apollo Knotless anchors are used for knotless fixation of ligament, tendon, bone, or soft tissue to bone in knee, shoulder, foot/ankle, elbow, and hand/wrist procedures. These anchors are cannulated with an integrated suture eyelet. The device is available in varying profile diameters & materials. Each implant is manufactured of all PEEK or a Titanium Eyelet & PEEK body combination. Reusable punches/taps as well as disposable punches for instrumentation are available.
Most popular related searches
disposable punch
soft tissue
tendon bone
bone tissue
knee foot
knee ankle
suture device
implant
tendon ligament
implant materials
| PART# | DIAMETER (MM) | LENGTH (MM) | MATERIAL (SCREW) | MATERIAL (EYELET) | SUTURE OPTIONS |
| 31-14520 | 4.5 | 20 | PEEK | PEEK | N/A |
| 31-15520 | 5.5 | 20 | PEEK | PEEK | N/A |
| 31-16520 | 6.5 | 20 | PEEK | PEEK | N/A |
| 31-14520-TI | 4.5 | 20 | PEEK | Titanium | N/A |
| 31-15520-TI | 5.5 | 20 | PEEK | Titanium | N/A |
| 31-16520-TI | 6.5 | 20 | PEEK | Titanium | N/A |
| 31-14520S | 4.5 | 20 | PEEK | PEEK | (1) #2 Suture |
| 31-15520S | 5.5 | 20 | PEEK | PEEK | (1) #2 Suture |
| PART# | DIAMETER (MM) | DESCRIPTION | DISPOSABLE/REUSABLE |
| 01-45P | 4.5 | Punch | Reusable |
| 01-55P | 5.5 | Punch | Reusable |
| 01-65P | 6.5 | Punch | Reusable |
| 00-45P | 4.5 | Punch | Disposable |
| 00-55P | 5.5 | Punch | Disposable |
| 01-45T | 4.5 | Tap | Reusable |
| 01-55T | 5.5 | Tap | Reusable |
| 01-65T | 6.5 | Tap | Reusable |
