Welcome kit + training
Send us your cassette and we will send you back with the reader and the software ready to start. We will provide training since the beginning.
Customization
You will be accompanied throughout all the process for our experts to tailor the reader according to your needs.
Supply & Quality agreement
Are you convinced by the result?
We can now proceed with the bureaucratic part.
Production
Ready for production!

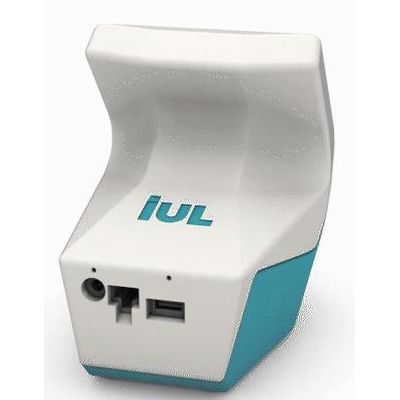

With its ultimate 3D printing manufacturing technology, IUL customizes 100% your reader from prototype to large-scale. All iPeaks are already equipped with the Flash Eye Technology to achieve the highest sensitivity. iPeak IUL system stores your data in the device, export as report or even integrates in your system. Whatever the size of your cassette and the type of the reader you are looking for we assess you for free.
- Analysis: Qualitative, quantitative or semi quantitative possible
- Stored results: 200 or 800 (depending on memory), including results and images
- Connectivity: Wi-Fi, Ethernet and LAN connectivity for interaction with portable devices (mobile phones or tablets)
- USB (a printer can be also connected)
- Cassette: Up to 7 lines / strip
- Up to 5 strips (depending on model)
- Sample traceability: Internal Barcode reader & Datamatrix reading for complete sample traceability
- Measurement time: 15 seconds
- Reproducibility*: Intra-device CV <0.5%
- Inter-device CV <2%
*According to medium values of the iPeak® Dynamic Range
