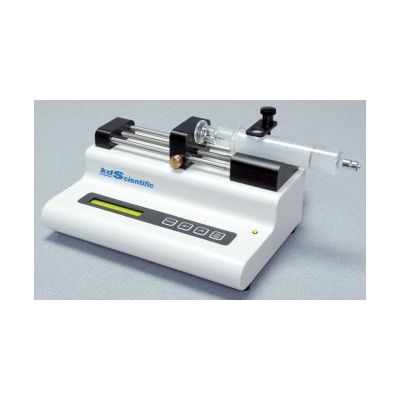

KDS -Model 100L -LED Indication for Infusion Pump
FromKD Scientific
The KDS 100 is now available with an optional LED to indicate the pump is on or running. This feature is ideal to get a quick indication if the pump is dispensing, especially if multiple pumps are in operation. Also available 101L, 120L 310L.
Most popular related searches
- Single syringe 10 µl to 60 ml, any manufacturer
- Simple menu-driven setup:
- select syringe size from displayed table
- set dispense volume
- set dispense flow rate
- Easy to read bright, backlight display
- Dispense volume displayed and has automatic shutoff at completion
- Volume and flow rate units (µl/hr or ml/hr) are selected automatically based on syringe size
- Last settings stored in permanent memory
- Button release of drive nut for easy syringe installation
- Choice of run / stop after a power interruption
- Pump Type: Infusion
- Max. No. of Syringes: One
- Syringe Size: 10 µl to 60 ml
- Dimensions: 9 x 6 x 5 in.
- 23 x 15 x 12 cm
- Weight: 4.5 lb (2 kg)
- Linear Force: 20 lb (9 kg) min.
- Advance Per Microstep: 0.529 micron (1/2 step)
- Max Step Rate (1/2 Step): 400 steps/sec
- Min Step Rate: 1 step / 30 sec.
- Accuracy: ± < 1%
- Reproducibility: ± 0.1%
- Audible Alarm: (Optional)
