Atom Medical Corporation
Atom - Model BILI-THERAPY Spot Type - LED Phototherapy Analyzer
An LED phototherapy that does not take up space to enable efficient phototherapy.
The blue LEDs facilitate effective phototherapy
The high irradiance level and effective wavelength of this unit shortens the treatment period and helps facilitate the early discharge of infants.
Space-saving design

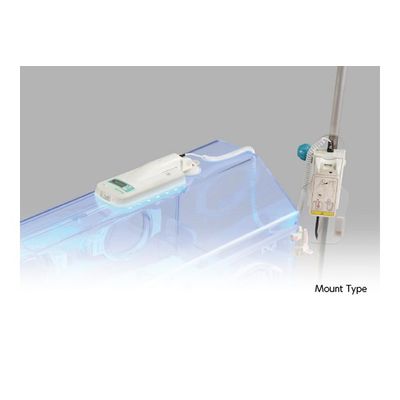

The unit can be attached directly to the F-Rail or I.V pole, without using a stand, which improves utilization of space around the incubator.
Switchable to an observation light with a single touch of a button
The unit can be used as an observation light for observing the state of an infant.The dimmer controller (white LEDs) on the unit is useful for developmental care.
- Type : Mount type : Arm type : Stand type
- Power : Voltage : AC100V - 240V
- Frequency : 50/60Hz
- Consumption : 30VA
- Light source : Blue LEDs
- Dimensions : Irradiation head：W12.5 x D33 x H8cm
- Power source part：W18 x D34 x H11cm : W100 x D13 x H45cm : W45 x D71 x H190cm
- Weight : Irradiation head：Approx.0.8kg
- Power source part：Approx.0.9kg : Approx.2.2kg : Approx.12kg
