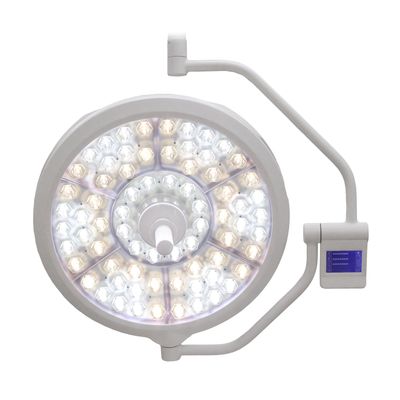

Avante -Model SLS 9000 Plus -LED Surgery Light
The Avante SLS 9000 Plus provides bright, consistent illumination and excellent engineering. The Avante SLS 9000 Plus LED is a shadowless surgery light designed for bright, long-lasting illumination. The light provides up to 140,000 Lux at maximum intensity and is rated for 50,000 hours of LED Life.
Most popular related searches
LED surgery light
LED surgical light
surgical light
articulated arm
operating room lighting
surgical light system
operating room
surgery
surgery procedure
surgery led
Using the on board LCD touchscreen, clinicians can easily adjust the illumination intensity, color temperature and Chromogenic index. The SLS 9000 Plus is available in multiple configurations to fit your operating room needs.
For more information on the Avante SLS 9000 Plus LED Surgery Light, contact a Avante representative today.
- Maximum output rated at 140,000 Lux.
- Cost-efficient surgical lighting system rated for 50,000 hours of LED life.
- Choose a single or dual head ceiling mount.
- Energy saving LED lighting provides consistent illumination at a cool light temperature.
- Expertly engineered design makes it is easy to position and adjust light heads for any surgical procedure.
- LCD touch screen operation measures illumination intensity, color temperature and Chromogenic index.
Weight
- Single Ceiling Mount Assembly: approx. 30 kg
- Dual Ceiling Mount Assembly: approx. 41 kg
- Light Head Assembly: approx. 10.3 kg
Dimensions
- Ceiling Casting: 290 x 260 mm
- Arm (articulated): 900 x 22 x 60 mm
- Light Head Assembly: 620 mm x 1190 mm
Rotations
- Ceiling Mount/Extension Arm Interface: Continuous
- Articulating Mount/Extension Arm Interface: Continuous
- Articulating Arm Vertical Movement: +30°, -40°
- Articulating Arm/Yoke Interface: Continuous
- Yoke/Lamp Interface: +/- 135° (270° range)
Electrical
- Input Voltage: 100 - 240 VAC 50/60 Hz - Single Phase
- LED Life: 50,000 hours (average)
Power
- Single: 54 W
- Dual: 108 W
Optical
- Correlated Color Temperature: 3,500 - 5000° Kelvin
- Irradiance: 233 W/m2 (1 m)
- Color Rendering Index: 91.6
- Focal Length: (0.7 meter)
- Central Illuminance (adjustable): 140,000 Lux
- Light Field Diameter (adjustable): 120 - 350 mm
- Depth of Illumination: 1.4 m
Environmental
- Operating temperature: 41° - 104° F (5° - 40° C)
- Storage temperature: 41° - 104° F (5° - 40° C)
- Humidity: 10 - 90% relative humidity
