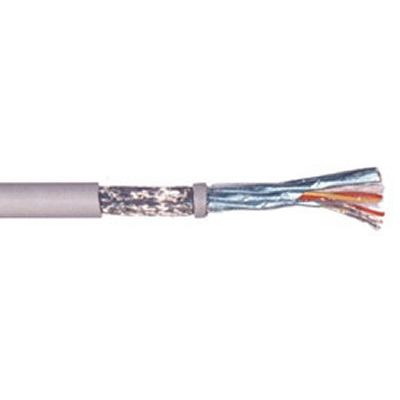

LI2YCY-PIMF
From Data Cables
Excellent imperviousness to interference radiation. Employed for terminals in medical engineering, data transmission technology, machine and machine tool manufacturing etc for lossless signal transmission. Individual screening of pairs ensures optimum crosstalk attenuation.
The copper overall screen provides additional protection against external electric and magnetic fields.
-
Most popular related searches
Construction
- fine strands of plain copper conductor
- stranding as per VDE 0295, class 5
- lapped with plastic film
- pairs twisted in layers (PIMF)
- individual cores insulated with PE
- cores marking yellow and red, pairs numbered or as per DIN 47100
- pairs screened with plastics laminated metal foil with multi-wire tinned tracer wire
- PVC outer sheath grey, RAL 7032
- overall screen made of copper, tinned
- 2 cores twisted
- film lapping
