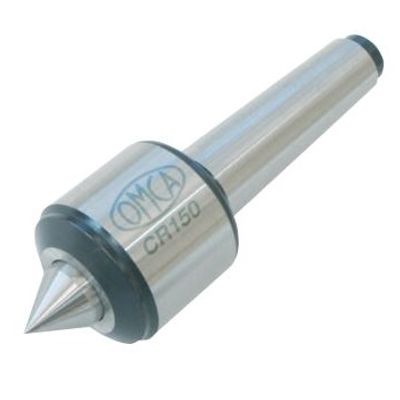

OMCA - Live Centers
A technically highly developed design with all the conventional shapes of center points. The housing is of drop-forged high grade material, thus guaranteeing a uniform structure having maximum stability and load capacity.
The fully hardened body increases the serviceable life considerably. The center is made of high quality tool-steel and is penetration-hardened and can be re-ground several times. The remarkable diameter of the center, the widely sized rollers, the head comparatively short, make the series CR centers for remarkable load radial and axial. The back end of the center is sopported by needles bearing. A special sealing ring protects the bearing from coolant and dirt. The live center series CR150, CR200, CR250 with all the accessories supplied, are the Universall live center for fine turning and roughing.
