Model Pedus-O and Pedus-U - Locking Foot Plate System from Marquard

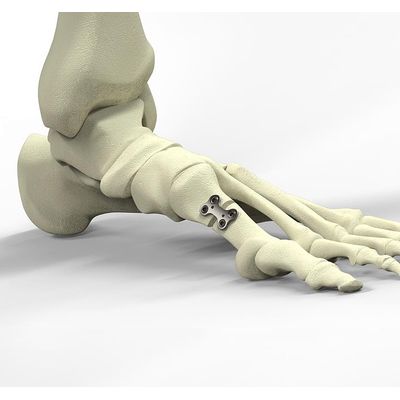

PEDUS-O – locking plating system for fixation of open wedge osteotomies.Spacer width 0 to 6 mm; Length 17 to 23 mm.With different spacer widths, PEDUS-O allows the exact correction of the IM angle with simultaneous stable fixation of the osteosynthesis using locking screws. PEDUS-U – locking universal plating system. Length 19 to 27 mm. The locking universal plate is used for various osteotomy techniques, arthrodeses and fractures in the forefoot.
Combination holes
The plates can be fixed with locking and non-locking screws in every screw hole.
Material
Titanium, anodization type II
Screws
Self cutting screws, ø 2,3 mm, 12-26 mm screw length
Wedge size
The correction angle can be defined by choosing the corresponding wedge size in steps of 1 mm from 2 – 6 mm.
K-wire fixation
Two k-wire holes for temporary fixation of the plates.
