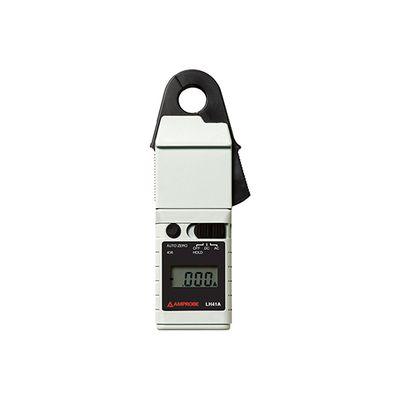

Amprobe -Model LH41A -Low Current Clamp On Ammeter

FEATURE: LH41A

AC Voltage: –

AC Current: 4.000 A, 40.00 A

DC Current: 4.000 A, 40.00 A

Resistance: –

Continuity: –

Accommodates conductors: up to 0.78″ (20 mm) in diameter

Power supply: 9 V, Alkaline battery PP3, NEDA 1604

Display: 4000 count

Characters: 10 mm high

Max. jaw capacity: 19 mm ø cable

Max. jaw opening: 20 mm (.78″)

Measuring range: 0 – 40 A DC or AC pk

Autoranging: 4 A / 40 A

Resolution: 1 mA in 4 A range, 10 mA in 40 A range

Basic accuracy: ± 1.3% + 5 digits

Frequency range: 40 Hz to 400 Hz in AC

• LH41A
• Batteries (installed)
