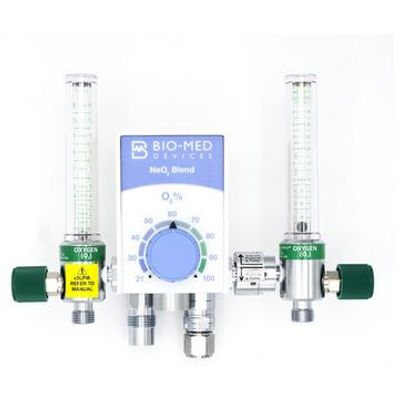

Crossvent -Model 2003FF -Low Flow Blender
NEO2 Blend with 3.5 lpm and 15 lpm flowmeters. Available w/ two 15 lpm flowmeters or 1 lpm and 15lpm flowmeters (2003FF15, 2003FF1). For the smallest patients where accuracy matters.
Most popular related searches
-
All blenders can be customized to meet your clinical needs and space requirements
-
*MRI Safe Models available*
-
Max Flow - Low Flow 30 Lpm/Mid Flow 50 Lpm/ High Flow 120 Lpm
-
Bleed Rate - Low Flow 3 Lpm/ Mid Flow 6 Lpm/ High Flow 12 Lpm
-
Bleed Flow explained - why does bleed flow matter (Click here)
-
Range (Bleed on) - Low Flow 0 - 30 Lpm/ Mid Flow 0 - 50 Lpm/ High Flow 2 -108 Lpm
-
Range (Bleed off) - Low Flow 3 - 30 Lpm/ Mid Flow 6 - 50 Lpm/ High Flow 15 -120 Lpm
-
Accuracy +/- 3% of full scale
- 7 different configurations
- 0-15 lpm flow meter close mounted to the left hand side (ideal for resuscitation bag connection here)
- The Right side flow meter can be interchanged with: 0-1, 0-3.5, or 1-15 lpm flowmeters.
- The right side flow meter is also an integrated bleed control switch. The bleed flow can be disabled by rotating the flow meter forward.
