Coilcraft - Model 0201HT - Low Profile Chip Inductor
FromCoilcraft, Inc.

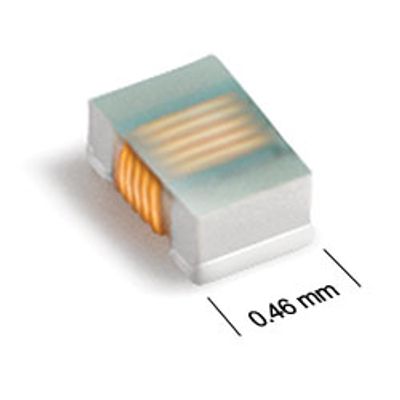

The 0201HT is the industry’s lowest profile 0201-sized (metric 0603) chip inductor with a maximum height of just 0.28 mm. It has significantly higher Q and lower DCR than similarly sized thin-film types and is optimized for high-frequency impedance matching in applications such as cell phones, wearable devices, WiFi, Bluetooth, GPS and LTE/5G IoT networks.
Most popular related searches
- 0201 sized inductor with low-profile 0.28 mm maximum height
- Excellent Q compared to non-wirewound alternatives at this height
- Very high SRF – as high as 36 GHz
Core Material:
Ceramic
Weight:
0.14 - 0.24 mg
Packaging:
2000 or 10,000 per 7″ reel; Paper tape: 8 mm wide, 0.42 mm thick, 2 mm pocket spacing
Temperature coefficient of inductance:
+25 to +150 ppm/°C
