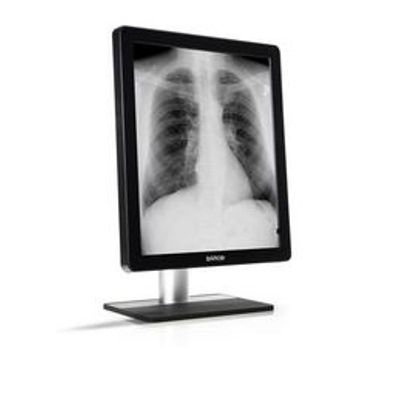

Coronis - Model 5MP LED (MDCG-5221) - Mammography Display
Equipped with high-bright LED backlights, Barco`s Coronis 5MP LED renders more JNDs (Just Noticeable Differences) to help you see more shades of gray. Additionally, Per Pixel Uniformity ensures every pixel is DICOM-compliant at all times, which increases contrast to noise ratio. Subtle details become more noticeable more quickly, resulting in reduced windowing and leveling time.
5MP premium diagnostic grayscale display system
- Grayscale medical display with 2560 x 2048 resolution
- Barco LED technology to unveil the subtlest details
- Intelligent Multi-Sensor Technology for incredible images
- Cleared for mammography
Coronis 5MP LED offers a high calibrated luminance – 600 cd/m² – to increase detection of the smallest details. Additionally, with the `hot light` I-Luminate button you can temporarily boost the display brightness.
Worry-free DICOM complianceBarco`s Coronis 5MP LED is bundled with QAWeb Enterprise for automated calibration and QA, ensuring continuous diagnostic quality and maximum uptime of your workstation. QAWeb Enterprise allows you to continue working while automated QA checks are being executed and enables remote, centralized image quality management.
High return on investmentBarco`s LED backlights are as low in power consumption as they are high in brightness. They are mercury-free, produce less heat, and last longer, providing a high return on your investment. The cool-running display electronics produce bright light more efficiently, requiring less cooling and reducing the overall operational costs for the hospital.
- Per Pixel Uniformity™: PPU measures and adjusts the luminance of each pixel, making every pixel permanently DICOM compliant.
- I-Luminate™: a push on the `hot light` I-Luminate button will temporarily boost display brightness.
- I-Guard™: the integrated I-Guard sensor continually guards and adjusts the luminance output of the display, ensuring continuous compliance with the DICOM standard.
- QAWeb Enterprise: the innovative QAWeb Enterprise system is an easy-to-use, web-based tool for automated calibration and Quality Assurance.
- 5-year warranty: Coronis 5MP LED is covered by a standard 5-year warranty.
Your business is our priority, which is why Barco`s services program is designed to drive positive business outcomes together.
Our mission is to enable the brightest and most reliable outcomes for you and your customers through
- a first-time right experience.
- ultimate peace-of-mind.
- maximum efficiency and ROI
- additional service revenues
- Screen technology Dual domain IPS, Normally Black
- Active screen size (diagonal) 541 mm (21.3")
- Active screen size (H x V) 459.8 x 375.3 mm (18.1" x 14.77")
- Aspect ratio (H:V) 5:4
- Resolution 5 MP (2560 x 2048 pixels)
- Pixel pitch 0.165 mm
- Gray imaging Yes
- Bit depth 10 bit
- Viewing angle (H, V) 176°
- Uniformity correction PPU
- I-Luminate Yes
- Ambient light presets Yes, reading room selection
- Ambient light sensor Yes
- Front sensor Yes
- Maximum luminance 1200 cd/m²
- DICOM calibrated luminance 600 cd/m²
- Contrast ratio (panel typical) 1200:1
- Response time ((Tr + Tf)/2) (typical) 12.5 ms
- Housing color RAL 9003 / RAL 9004
- Video input signals DVI
- DisplayPort
- USB ports 1x USB 2.0 upstream (endpoint)
- 3x USB 2.0 downstream
- Power rating 24 VDC, 4 A; 5 VDC, 0.5 A
- Power requirements This device shall only be powered by the following medical approved power supply:
- Sinpro, type CPU110-201
- Ratings marked on the medical power supply:
- Input rating: 100–240 VAC, 1.5–0.6 A, 47-63 HZ
- Output rating: 24 VDC, 4.58 A; 5 VDC, 0.5 A
- Power consumption 46 W (nominal)
- < 0.5 W (hibernate)
- < 0.5 W (standby)
- Dimensions with stand (W x H x D) Portrait: 407 x 523~623 x 235 mm
- Landscape: 493.5 x 479~579 x 235 mm
- Dimensions w/o stand (W x H x D) 407 x 494 x 84 mm
- Dimensions packaged (W x H x D) 676 x 565 x 317 mm
- Net weight with stand 13.25 kg
- Net weight w/o stand 8.25 kg
- Net weight packaged 19.61 kg (without optional accessories)
- Tilt -10° to +30°
- Swivel -45° to +45°
- Pivot 0° to 90°
- Height adjustment range 100 mm
- Mounting standard VESA (100 mm)
- Screen protection Protective, anti-reflective glass cover
- Recommended modalities All digital images, including digital mammography
