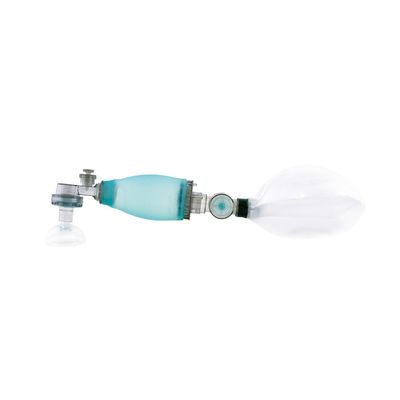

MEDPLANT - Manual Resuscitators (Reusable) for Neonatal

Current use: reusable manual resuscitators are made of silicone and used for artificial pulmonary ventilation in conditions of respiratory failure of any etiology:

• for adults ?D-?P-V, patient weight - more than 20 kg;
• for children ?D-?P-D, patient weight - from 10 till 20 kg;
• for newborns ?D-?P-N, patient weight -below 4 kg.

• Expanding time of bags– less than 1 sec;
• Ergonomic silicone masks with one or two components, reservoir bags, highly reliable valves with possibility of oxygen connection;
• Notable for high strength, durability and elasticity.

Volume of inspired gas, ml, not less than: 150
Capacity of ventilation bag, ml: 350±100
Capacity of reservoir bag ml: 600
Minute ventilation, l/min: 5
Pressure limitation in breathing circuit, hPa: 55±15
Resistance to inspiration, hP: 1
Resistance to expiration, hPa: 2
Gas leak at pressure 30hPa, l/min, not more than: 0,5
Overall dimensions, mm (in a cover bag) : 350?140?200
Weight, kg: 0,9
