Sunkaier -Model GS600 -Mechanical Seal
FromSunkaier

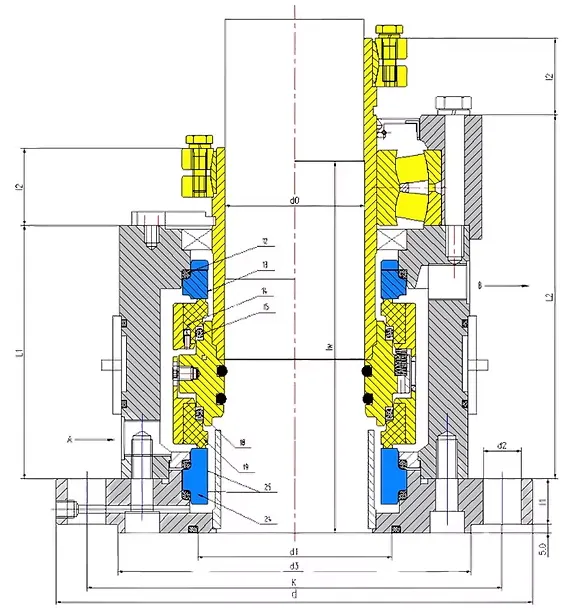

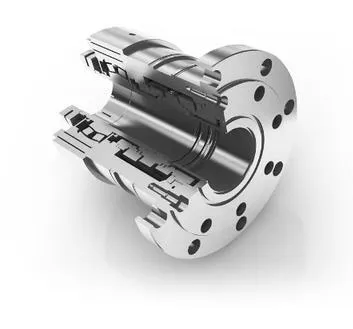

GS600 double mechanical seal is designed for general purpose aapplication. It`s size from 40 to 400 mm, and can be used in many apllications.
Most popular related searches
- Operating pressure: vacuum...40 bar (abs.)
- Vessel temperature: -50...+400°C
- Shaft size: 40...220 mm
- Sliding speed: 0...5 m/s
MAIN DESIGN FEATURES
- Life cycle cost savings due to extremely solid construction
- FEA ensures optimized stress distribution in every seal ring
- Special spring designs ensure uniform pre-tensioned conditions even in cases of significant agitator shaft displacements
- Almost zero-leakage under the roughest conditions
