Apollo -Medial & XT Anchor
The apollo Medial & XT anchors are used for fixation of ligament, tendon, bone, or soft tissue to bone fixation in knee, shoulder, foot/ankle, elbow, and hand/wrist procedures. These anchors are cannulated with suture integrated into the device. There are multiple sizes and suture configurations available. Each implant is manufactured from Titanium or PEEK material. Reusable punches/taps as well as disposable punches for instrumentation are available.
Most popular related searches
disposable punch
suture anchor
soft tissue
tendon bone
bone fixation
bone tissue
knee foot
knee ankle
implant
tendon ligament
| PART# | DIAMETER (MM) | LENGTH (MM) | MATERIAL | DESCRIPTION |
| XTS-5515 | 5.5 | 15 | PEEK | (3) #2 Sutures |
| XTS-6515 | 6.5 | 15 | PEEK | (3) #2 Sutures |
| XTS-5515-TI | 5.5 | 15 | Titanium | (3) #2 Sutures |
| XTS-6515-TI | 6.5 | 15 | Titanium | (3) #2 Sutures |
| PART# | DIAMETER (MM) | LENGTH (MM) | MATERIAL | DESCRIPTION |
| MSA-4515 | 4.5 | 15 | PEEK | (2) #2 Sutures |
| MSA-5515 | 5.5 | 15 | PEEK | (2) #2 Sutures |
| MSA-6515 | 6.5 | 15 | PEEK | (2) #2 Sutures |
| MT-5515 | 5.5 | 15 | PEEK | (2) 1.3mm round-flat-round tapes |
| MT-6515 | 6.5 | 15 | PEEK | (2) 1.3mm round-flat-round tapes |
| MSA-4515-TI | 4.5 | 15 | Titanium | (2) #2 Sutures |
| MSA-5515-TI | 5.5 | 15 | Titanium | (2) #2 Sutures |
| MSA-6515-TI | 6.5 | 15 | Titanium | (2) #2 Sutures |

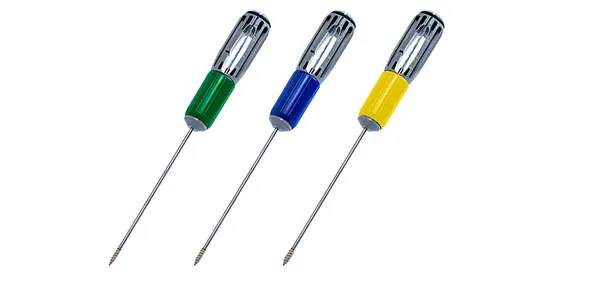

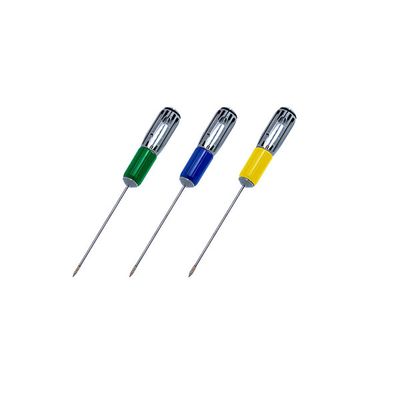

| PART# | DIAMETER (MM) | DESCRIPTION | DISPOSABLE/REUSABLE |
| 01-45P | 4.5 | Punch | Reusable |
| 01-55P | 5.5 | Punch | Reusable |
| 01-65P | 6.5 | Punch | Reusable |
| 00-45P | 4.5 | Punch | Disposable |
| 00-55P | 5.5 | Punch | Disposable |
| 01-45T | 4.5 | Tap | Reusable |
| 01-55T | 5.5 | Tap | Reusable |
| 01-65T | 6.5 | Tap | Reusable |
