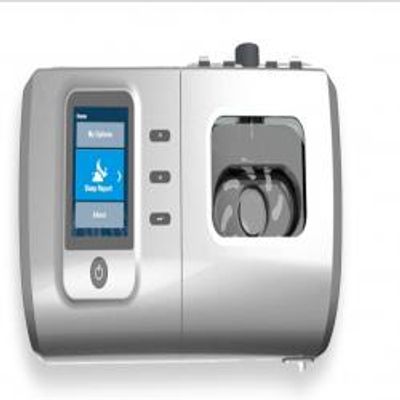

Medzer - Model BPAP-1000B - Medical BiPAP System

Work mode: CPAP, Auto, S, T, ST
CPAP: Pressure range : 4 cmH2O ~ 30 cmH2O; IPAP : 4 cmH2O ~ 30 cmH2O; EPAP : 4 cmH2O ~ 20 cmH2O
Backup rate: 5 ~ 50 bpm, adjustable
Pressure delay rise time: 0 min ~ 60 min
I/E: 10 % ~ 80 %
Inspirate trigger: 1 ~ 5 level
Expirate level: 1 ~ 5 level
Inspirate sensitivity: 1 ~ 5 level
Water capacity: 220 ml Max
Pressure rise time: 0 ~ 60 min adjustable 1min/step
Humidifier: 0 ~ 5 level
Data storage: SD Card
Display: 2.8 inch TFT, 320 x 240
Power supply: Input : 100 V ~ 240 V, 50 Hz / 60 Hz, 2 A ~ 1 A; Output : 24 V, 2.5 A
Dimensions: 280 × 140 × 95 mm
Weight: 4.5 kgs

• Independent airflow channel
• Integrated Heated Humidifier
• More than 20 hr real time data
• 2.8-inch TFT Screen
• Airflow and pressure waves on screen
• SD card for data storage
• Awake Detection
• Breath Event Detection
• EPR (Expiratory pressure relief)
• Auto-Leak Compensation
• Auto-Altitude compensation
• Alarm for power cut
• Parameter lock facility
