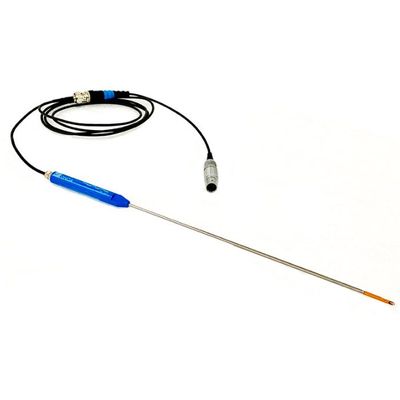

Onda - Model HCT Series - Medical Cleaning Tank Hydrophone
FromOnda Corporation
The HCT hydrophone offers a reliable solution to characterize and monitor the acoustic properties of cavitation vessels, like ultrasonic cleaners. Its unique single point sensing design allows measurements with high spatial resolution to offer true 3-dimensional mapping of the cleaning tank. The rugged construction allows routine mapping of the acoustic pressure and ultimately determination of the cleaning efficiency of the tank.
The HCT Series hydrophones that are designed to withstand high pressures from acoustic cavitation.
- Acoustically isolated sensor acting as a single point sensor to map cavitation fields
- Small 3 mm shaft diameter to navigate into tight spots
- Teflon shaft material compatible with wide range of chemistries
- 1.5 m integral cable with BNC connector
- Compatible with MCT-2000 and MCT-1200 cavitation meters
HCT-0320
- Useful Frequency range: 20 to 1200 kHz
- Max. Operating Temperature: 70°C
- Chemical Compatibility: pH Range 4 to 12 (Teflon)
- Probe Dimensions: Shaft Length: 270 mm
- Cable: Connector with embedded calibration file, 1.5 meter length
- Hydrophone Slide (Optional): 40, 80, 120, 160, 200 mm
