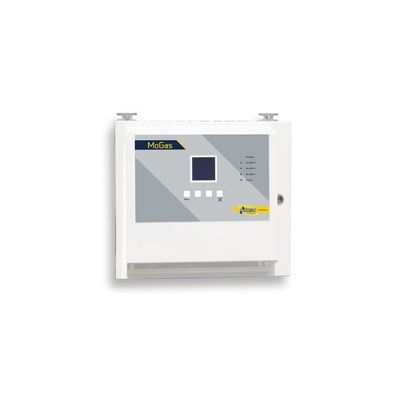

Ntron MoGas - Medical Gas Analyzer

• Simply to install and easy to operate
• Large backlit LCD display
• Environmental protection rating to IP65
• Optional inbuilt audible and visual alarms
• Programmable O2, CO2 and CO alarms output
• Two isolated 4-20Ma analogue outputs
• Zirconia oxygen sensor
• Infrared CO2 sensor
• Electrochemical CO sensor

Performance:

• Size: 530mm high x 417mm wide x 208 deep
• Weight: 23kg
• Measurement ranges:
• 0-96% Oxygen (zirconia)
• 0-500ppm Carbon Dioxide (infrared)
• 0-50ppm Carbon Monoxide (electrochemical)
• 0-1000 dewpoint (moisture)
• Power requirements: 100-240VAC 50Hz. Customer power connection
• Enclosure: Painted mild steel (RAL9010)
• Visual indication : Large LCD Display with backlight
• Alarm levels: Two user configurable alarm relays-each channel
• Sample gas : Position pressure samples up to 10BARG. Regulated within enclosure
• Electrical connections: Two-off M20 gland entry holes
• Sample connection: 6mm compression fittings
• User interface: 4-membrane push button
• Temperature range: Overall operating: 0 to +45°C
• Environmental rating: IP65
• Humidity range: 15% to 95% relative, non condensing
• Electromagnetic compatibility: CE marked and tested to EN61000-6-4; EN61000-6-2; EN55022; EN61000-3-3; EN61000-3-2

O2 Sensor:

• Type: Zirconia
• Power supply: 18-24VDC
• System output: 4-20mA
• Response time: T90<3s
• Temp. ambient: 0-45°C
• Other temp: Heater 55C
• Sensitivity of range: 0.10%

CO2 Sensor:

• Type: NDIR Infrared
• Power supply: 24/5VDC
• System output: 4-20mA
• Response time: T90 <30s
• Temp ambient : 0 to +45°C
• Sensitivity of range: 10ppm

CO Sensor:

• Type: Electrochemical
• Power Supply: 24 VDC
• System output: 4-20mA
• Response time: T90 < 20s
• Temp ambient: 0 to 45°C
• Sensitivity of range: 0.3ppm

Moisture:

• Type: Dewpoint
• Power Supply: 240VDC
• System output: 4-20mA
• Response time: T90<30s
• Ambient temp: 0-45°C
• Sensitivity: 0.3ppm
