Model Tomo-Mam 3D - Medical Imaging Test Phantom
This is a simple and efficient-to-use routine medical imaging test phantom which is used daily to evaluate the imaging performance of digital mammography systems. It complies with the EUREF Protocol for the Quality Control of the Physical and Technical Aspects of Digital Breast Tomosynthesis Systems. It has been manufactured from the highest purity and best quality PMMA.
Most popular related searches
medical imaging testing
medical imaging
medical imaging phantom
digital mammography system
routine medical imaging
medical testing
medical test
digital mammography
mammography system
medical phantom
It allows for evaluation of:
- Automatic Exposure Control (AEC) checks
- Geometric distortion
- Signal-to-noise ratio (SNR)
- Contrast-to-noise ratio (CNR)
- Homogeneity
- Z-resolution
Specification:

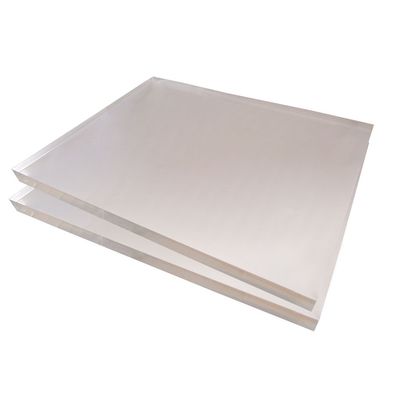

- 1 PMMA plate 300 x 240 x 5mm with 25 embedded spheres (1mm dia.)
- 1 PMMA plate 300 x 240 x 20mm with embedded 99.99% 10x10mm Al foil
- 1 PMMA plate 300 x 240 x 5mm
- 1 PMMA plate 300 x 240 x 10mm
- 1 PMMA plate 300 x 240 x 20mm
Comes with:
- Detailed user manual
- Robust carrying case
Complies with:
- EUREF Protocol for the Quality Control of the Physical and Technical Aspects of Digital Breast Tomosynthesis Systems
