Model Pure CTDI - Medical Imaging X-Ray Phantom

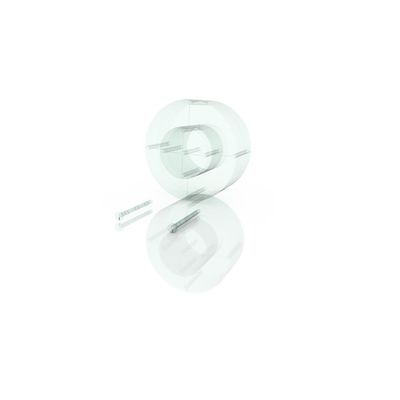

This medical imaging X-ray phantom allows for measurement of the Dose Index (DI) of the CT imaging system. The phantom consists of 2 large PMMA cylinders representing the head and body. The head is able to nest inside the body. An additional phantom with a Paediatric head which nests into the adult head is also available.
Most popular related searches
medical X-ray
medical imaging
medical X-ray imaging
CT imaging system
medical imaging phantom
CT imaging
X-ray imaging
medical phantom
pediatry
It allows for evaluation of:
- Dose Index (DI)
- CTDI100 (centre)
- CTDI100 (peripheral)
- CTDIfree air
- CTDIvol (weighted CTDIw)
- CTDIw (weighted CTDI100)
Specification:
- The head has a 160mm diameter
- The body has a 320mm diameter
- Each cylinder is 145mm long
- Holes in each cylinder for 8, 10, 13mm diameter radiation detectors
- PMMA plugs are also provided for plugging the holes when not in use
- Alignment markers
Comes with:
- Detailed user manual
- Robust carrying case for easy transport
Complies with:
- IEC 61223-3-5
- IEC 61223-3-6
- IEC 60601-2-44
