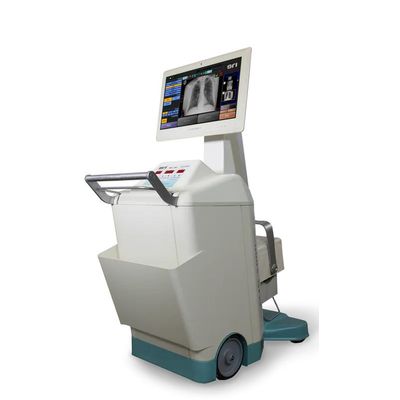

Source - Model UC-5000 - Medical Mobile X-ray Systems

I recently reviewed a series of radiographic images taken on Urgent Care patients utilizing the UC-5000, a new low-power, high-frequency mobile X-ray system specifically designed for the Urgent Care arena and manufactured by Source-Ray Inc. These patient images included the majority of X-ray exams that are most common to Urgent Care: chest (PA/Lateral), lumbar spine (PA/Lateral), shoulder, and extremities (arm, hand, ankle and foot). All were direct digital images. The images were of the highest diagnostic quality. Even the chest and lumbar spine X-ray images, which were taken on patients weighing more than 270 lbs., displayed consistent resolution. I find the quality remarkable considering the images were produced by a lower power unit.
This unit requires only minimal lead shielding and therefore can be utilized in the existing patient exam rooms, making it easier to add X-ray equipment to existing offices. This flexibility, coupled with excellent quality, makes the Source-Ray UC-5000 an excellent match for the needs of the Urgent Care market.

• Minimal Space Requirement (as little as 8’ x 10’)
• No Special Power Requirements (standard 115V)
• Significant Savings in Both Initial Cost and Service Expenses
• Minimal Site Preparation Expenses
• Fully Touchscreen, Direct Digital & Wireless
• Full Turnkey - "Plug and Play" X-ray Solution Specifically Designed for the Urgent Care Arena

• Radiographic Applications     Designed with agility in mind for portable x-ray applications
• Generator Type: High frequency Resonant Inverter Microprocessor controlled
• KVP Range: 40 – 120
• MA Range: 15 – 60 Selectable
• MAS Range: 0.125 – 200
• Exposure Time: 0.01 – 3.33 Seconds
• X-ray Tube
• Stationary anode
• 15° Target
• 1.2 fs 30,000 Heat Unit Storage
• Collimator: 200° Rotation – High output LED lamp, Laser Indicators.
• Exposure Switch: 2 Position,Prep/X-ray
• Mechanical Stand: Welded Aluminum construction
