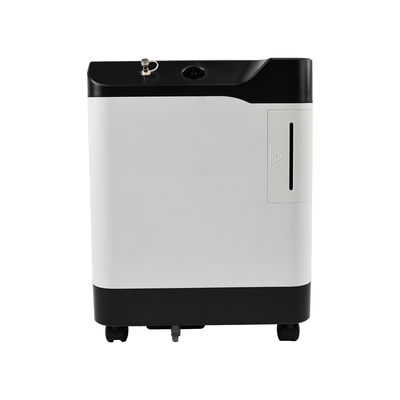

Youyi - Model YY-ZY3A - Medical Oxygen Concentrator
Target Population: When the maximum flow rate is 3L, the oxygen concentration can reach 93%±3%, meeting the requirements for medical oxygen therapy. Oxygen concentrators with a flow rate of 3 liters and above: even at a relatively high gas flow rate, they can still ensure that the oxygen concentration is above 90%. Patients with respiratory system diseases, cardiovascular diseases, and other conditions requiring long-term oxygen therapy and treatment typically need medical oxygen concentrators of 3 liters and above to meet their treatment needs.
- Oxygen Flow : 1-3L/min
- Power : 230W
- Oxygen Conccentrator : 93±3%
- Noise : ≤60dB
- Outlet Pressure : 50±5kPa
- Size : 313*203*404 MM
- Carton Size : 37*26*51 CM
- CBM : 0.049 m³
- Voltage&Socket : CUSTOMIZED
- N.W. : 10 KG
- G.W. : 11.5 KG
- Control : Touch screen/Remote controller
- Function :
- Voice broadcast
- Nebulization
An oxygen concentrator is a device that utilizes the PSA (Pressure Swing Adsorption) principle of molecular sieves to increase oxygen concentration by adsorbing nitrogen and other gas components. When the equipment is in operation, compressed air is injected into a sealed adsorption tower filled with molecular sieves, causing the pressure inside the tower to rise. As the environmental pressure increases, the molecular sieves adsorb a large amount of nitrogen from the compressed air, while the oxygen in the compressed air remains in a gaseous state and is collected through certain pipes. This process is known as the adsorption process.
When the molecular sieves inside the container reach the critical state of adsorption saturation, the adsorption tower is depressurized by blowing air. As the environmental pressure decreases, the molecular sieves’ ability to adsorb nitrogen decreases, and the nitrogen is released from inside the molecular sieves and discharged as waste gas. This process is commonly referred to as the desorption process. To ensure a continuous and stable supply of oxygen, oxygen concentrators use two molecular adsorption towers, alternating work through a separation valve control, with one tower in the adsorption process while the other is in the desorption process.
- High-definition large screen for easy operation;
- Real-time oxygen concentration detection, intelligent voice broadcast, and alarm system;
- High concentration medical standard, large flow output;
- High-efficiency pure copper oil-free compressor, longer life, stable operation, professional noise reduction, greatly reducing noise caused by friction;
- Ultra-quiet care for peaceful sleep, greatly improving the comfort of oxygen inhalation, quiet oxygen production to guard every sweet dream;
- Multi-level precision filtration system, purifying every breath;
- Surrounding airflow convection design, effectively improving the circulation of air inside and outside the system, effectively balancing the internal temperature of the system;
- Low-power operation system, more comfortable and economical to use.
- The product is smaller, more flexible, and easy to move.
- Actual service life of molecular sieves
- YY-ZY3A, YY-ZY3B: Full lithium sieve used for 3000 hours. Oxygen concentration is expected to drop below 90%, used for 7000-8000 hours, the machine will issue a low oxygen concentration alarm, and the oxygen concentration will drop to 82%.
- Noise measurement data: YY-ZY3A, YY-ZY5B: 42-45dB(A weighted)
- After-sales Service: One-year warranty for the entire machine, three-year warranty for the compressor.
- Maintenance: Replace the filter felt and filter sponge every 100 hours of cumulative use.
