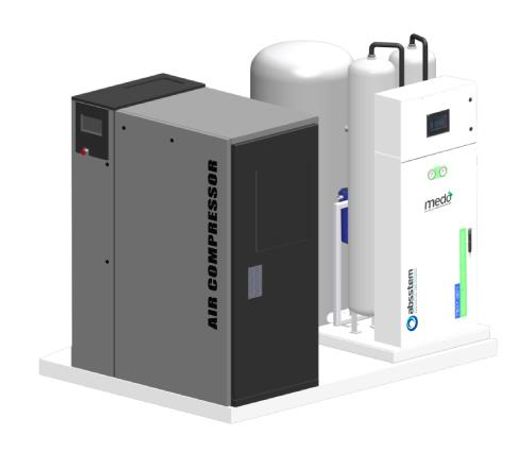

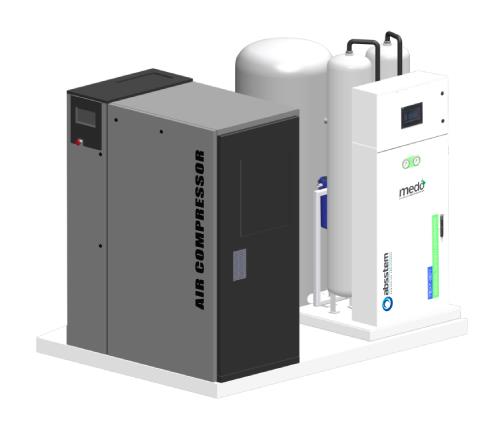

Absstem - Model MedO - Medical Oxygen Generators

- Model MedO - Medical Oxygen Generators

0

MedO, the smart and efficient oxygen generator, aims to help medical facilities produce their own medical-grade oxygen onsite. This eliminates logistical challenges and saves them from stocking up pre-filled cylinders. With a series of air filters and a special bacterial filter, MedO produces oxygen within the recommended range of purity (93% ± 3%) even when the intake contains a high concentration of pollutants.

Products Details

Features

  • Global Manufacturing Standards
  • 24x7 Onsite Oxygen Production
  • Worldwide Pharmacopeia Compliant
  • Advanced Display & Control System
  • ROI Less than 1 Year
  • Ergonomic & Compact Design
  • 10+ Years Life

Benefits

  • Consistent Supply
  • Fully Automated
  • Live System Monitoring
  • Plug N Play
  • Easy Installation
  • Lowest* Maintenance Cost
  • Constant Service & Support
  • 10 Years Warranty Plans

Technical Data

  • Inlet air as per ISO 8573.1:2010 - Class 1.4.1
  • Medical grade conforming to US, EU, UK and Indian pharmacopoeia
  • Pressure up to 200 kg/cm2g is available on demand through oxygen compressors
  • Sound Level of 65 dB from a distance of 1 meter.
  • Oxygen flow is 2.5 to 250 NM3/hr
  • O2 Delivery Pressure is 5.3 barg
  • Oxygen dew point is -500C
  • USB Storage is available to store parameters values.
  • CE certified electrical & electronics with 24 VDC operating Voltage.
  • All tanks are fabricated per ASME standards.
  • All tanks have corrosion-resistant internal environment.
  • ISO 9001 2015: Manufacturing is in accordance with certified QMS Quality Management System.
  • Working temperature -50C to 450C
  • Power Supply is 230 VAC, 50/60 Hz
  • Oxygen concentration of Absstem MedO is 93(±3)%. Higher purities (95% and above) are available on demand.

Applications

Hospitals & Clinics

One of the most used gases in hospitals is Oxygen. Be it ventilators, ICUs, or oxygen therapy – they all need oxygen. Absstem’s custom-designed MedO unit provides a continuous supply of oxygen that is produced on-site.

With ISO certifications, our generators give consistent oxygen output at the exact required purity levels. There are neither hassles for refilling or transportation of the cylinders, nor the constant stress of potential downtimes, delays, variations in purity and pressure outputs.

Hospitals become independent from oxygen cylinders, once in-house oxygen plants are installed.

Army Field/Hospital

We have developed our oxygen generators keeping in mind the oxygen requirements in remote areas of the country where our frontline troops are deployed. It is practically not possible to set up fully-functional hospitals with all the advanced medical facilities at such locations. But it is relatively easier to install onsite oxygen generators at such places so that people who are fighting for us have enough supply of the life-saving O2 if and when required.

We have different installation schemes to suit the requirements of both army hospitals and temporary medical facilities built-in battlefields.

Medical Cylinder Filling

At times, it is better to keep sufficient stock of pre-filled oxygen cylinders as it can help a medical facility meet its fluctuating need for medical-grade oxygen. Our compact yet efficient medical oxygen plant can help you to fill a large number of cylinders in one day so that you do not face issues like inadequate supply.
