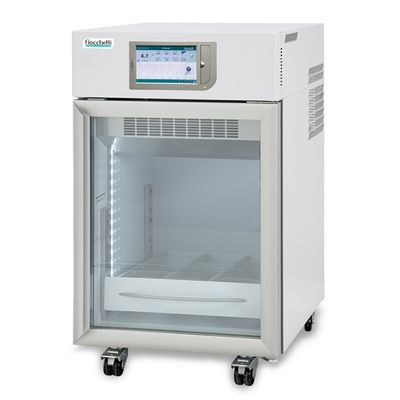

Fiocchetti -Model EMOTECA 100 TOUCH - Medical Refrigerator
The EMOTECA 100 TOUCH is a specialized medical refrigerator designed for the secure storage of blood, plasma, and blood components. It operates at a consistent temperature of +4°C to ensure optimal preservation conditions. With a capacity of 126 liters (4.45 cubic feet), it can accommodate up to 42 bags, each measuring 450 ml, with an optional additional drawer. The refrigerator features a robust monocoque structure constructed from plasticized, atoxic white steel or stainless steel, lined with an antibacterial film. An advanced 7-inch FULL TOUCH SCREEN controller is integrated, offering precise temperature regulation with 0.1°C resolution and ±0.3°C accuracy. The device includes sophisticated monitoring and alarm systems, such as data history via SD card, USB port, SIM card slot, and LAN connectivity. Additional options for GSM and Wi-Fi modules enable cloud-based supervision. The refrigeration system utilizes professional ventilated cooling with automatic defrosting and energy-saving features.
STRUCTURE AND REFRIGERATION
- Inner dimensions: 44 x 51,6 x 42,1 cm
- Blood bags capacity (450 ml): nr. 21 ('till 42 with an additional drawer)
- Nominal capacity: 100 l (3,53 cu ft)
- Net capacity: 96 l (3,40 cu ft)
- Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
- Insulation thickness: 40 mm.
- Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.
- Nr. 4 wheels (no. 2 frontal wheels with brake) permit to move refrigerator to sanitize the surrounding area.
- Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness
- Refrigeration type: Professional ventilated
- Defrost type: Automatic, adaptive, with vaporization of condensate water
- Power consumption reduction with function Night & Day
Certified blood bank equipped with touchscreen controller, featuring data and alarms recording
Medical devices series EMOTECA are designed and certified for hospitals, blood transfusion centers, nursing homes and blood collection centers.
To comply with the most restrictive regulations, Fiocchetti’s Emoteca range offers the most comprehensive safety features for the storage of blood, blood-related products and donated breast milk. Emoteca series therefore features: Touch controller with temperature graph, an independent recording module "DMLP Touch", backup batteries for data recording and alarms messages during power failure events, external contacts for remote control+ Ethernet port, product temperature simulation probe, electric-digital lock for access control and extractable drawers with dividers for blood bags arrangement. Fiocchetti blood banks are Medical Devices complying with Directive 93/42/EEC (class IIa) and its amendment 2007/47/EEC and are registered in the MD Repertoire of the Italian Ministry of Health. They also comply with DIN 13277 and 2011/65/EC (RoHS)7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the device, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status.
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module, as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
The medical devices destined to the storage of blood, plasma and blood components offer an electric digital lock accessible by an optional, generic user, or single dedicated password, the DMLP TOUCH module for independent recording of temperatures and of any alarm condition (even during power failure), a sensor to simulate product temperature and an external terminal board for dry contact and RJ45 port. The devices can always be upgraded with further accessories such as GSM and Wi.fi, and supervised by local or Cloud based monitoring systems.
Acoustic and visual alarms, mutable, will be triggered by any anomaly condition even during power failure thanks to supplied buffer batteries. The events are automatically recorded along with date, time, type of alarm, duration and highest temperature reached.
- Refrigerant gas type: R290
- Energy consumption: 0,5 kWh/24h
- Power absorption/current: kW 0,14 / Amp 0,9
- Inrush current: Amp 2,5
- Noise level: 40 dBA
- Heat rejection/emission EN 12900: W 20
- N° max Griglie: 2
- Drawers included nr.: 1
- Drawers max nr.: 2
- Inner dimensios of drawers with dividers (LxPxH) (each compartment): cm 10x45x7,5 (3)
