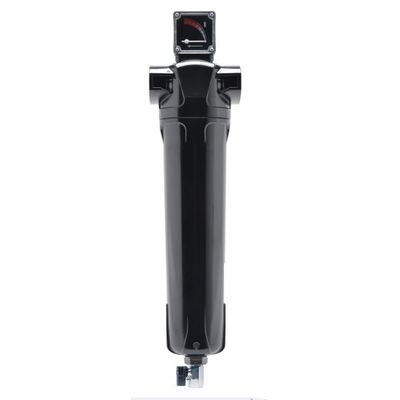

Nano - Model GMS 0006 - Medical Sterile Filters

HOUSING FEATURES

• Designed in accordance with ASME pressure vessel standards.
• Carries CRN (Canadian Registration Numbers) for approved use in every province of Canada.
• “Dead Stop” bowl feature provides full closure without over tightening.
• 10 year housing warranty
• Optimized seal ensures zero leakage and ease of bowl removal during element replacement.
• No tie rod simplifies element change out and reduces access requirements for bowl removal.
• Comprehensive range of filter mounting accessories

ELEMENT FEATURES

• Third party tested and validated in accordance with NFPA 99, HTM 02-01, ISO 7396-1, and AS 2896.
• 100% integrity tested
• Guaranteed for a minimum of 100 sterilizations at 248°F.
• Stainless steel end caps for compatibility with autoclave sterilization

ELEMENT GRADES: MS

• DOP efficiency: (1): > 99.9999%
• Particle removal (microns) (2): 0.01
• Recommended operating temperature range (°F): 35 to 212
• Design operating temperature range (°F): 35 to 248
• Maximum autoclave temperature (3): 273
• Pressure drop - clean (psid): 1.5
• Pressure drop - recommended replacement (psid): 6.0
• End cap material: stainless steel
• Flow direction through element: outside to inside
• Maximum steam sterilization cycle: 100
• Maximum element life: 6 months or 1000 hours
• (1) As specified in HTM 02-01 medical gas pipeline systems.
• (2) Per ISO 8573.1:2010
• (3) Applies to element only
