Onda -Model PCS-1000 -Medical Ultrasound Pulsed Check Source System
FromOnda Corporation
Designed to meet the need for a stable reference source in laboratories, the PCS-1000 serves as a trustworthy reference to regularly check the health of an acoustic measurement system. While representing your diagnostic imaging source, the PCS consists of a certified electronics controller and transducer that produces a known acoustic output. The PCS is calibrated in full compliance with regulatory standards AIUM-NEMA UD-2, UD-3, IEC 62127 and associated IEC standards.
Most popular related searches
- PCS-1000 calibration traceable to a National Standards Laboratory
- Complies with regulatory standards

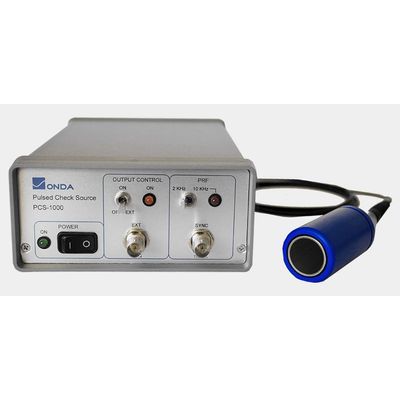

- Portable plug-and-play unit with visible blue transducer
- Selectable output power: 18 mW and 80 mW
- Attenuator provides linear mode output
- Simple synchronization with measurement system
Controller:
- Output pressures: Pcmax: 4 – 6 MPa, Prmax: 1.5 – 2.5 MPa
- Pulse Repetition Frequency: 2 & 10 kHz
- Total Acoustic Power (nominal): 16 mW & 80 mW
- Output Power Stability: ± 3% from certified value
- AC supply: 110/220 V, 60/50 Hz
- Pulses ON / OFF externally controlled by TTL input
- Synch Signal Output: TTL
- Linearity (attenuated mode)* : σm < 0.5
- Dimensions: 254 (W) x 146 (D) x 71 (H) mm
Motion:
- Pulse center frequency: 3.5MHz, broadband
- Dimensions: 32 mm diameter, 144 mm long
- Cable length: 2 m
The PCS-1000 serves as a trustworthy reference pulsed check source, representing diagnostic imaging conditions, to regularly check the health of an acoustic measurement system.
