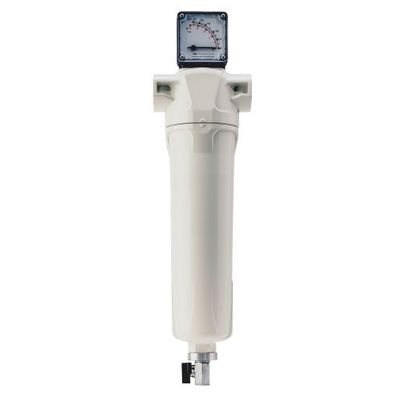

Nano - Model GMV 0025 - Medical Vacuum Filters
nano GMV medical vacuum filters are essential to avoiding damage to vacuum pumps and preventing potentially hazardous biological contagions from being exhausted into the surrounding environment. Designed for use in critical medical applications to remove solid, liquid, and bacterial contamination in vacuum systems, the nano GMV filters provide a safe and reliable product that is used in hospitals, operating rooms, intensive care units, laboratories, veterinary hospitals, dental offices, and medical vacuum plant installations worldwide.
Most popular related searches
medical vacuum filter
medical vacuum
medical filter
intensive care unit
medical vacuum system
dental office
medication application
intensive care
operating room
medical system
HOUSING FEATURES
- Designed in accordance with ASME pressure vessel standards.
- Carries CRN (Canadian Registration Numbers) for approved use in every province of Canada.
- “Dead Stop” bowl feature provides full closure without over tightening.
- 10 year housing warranty
- Easily removable sterilizable drain flask and differential pressure monitor supplied as standard.
- Unique design provides maximum filtration performance while minimizing pressure losses for optimum energy efficiency.
ELEMENT FEATURES
- Meets ISO 7396-1, HTM 02-01 and 2018 revision of NFPA 99 (5.1.3.7.4).
- Designed to eliminate solid, liquid and bacterial contamination from medical vacuum systems.

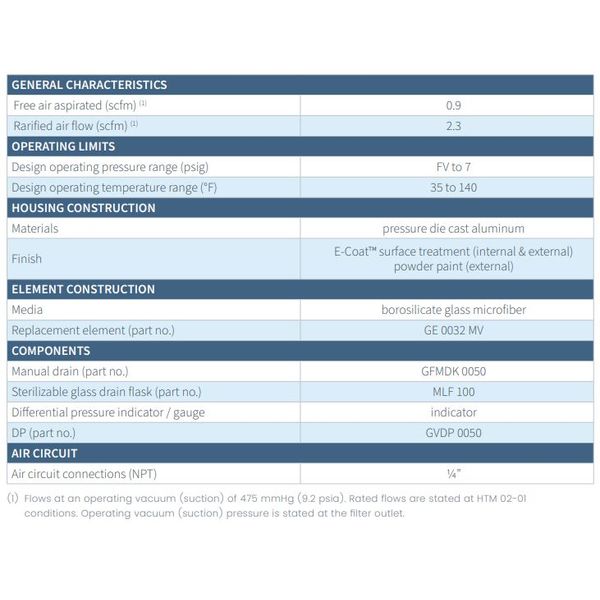

ELEMENT GRADES: MV
- Particle removal (microns) (1): > 99.9999% (HTM 02-01 specifies > 99.995%)
- Design operating temperature range (°F): 35 to 140
- Pressure drop - clean (psid): ≤ 0.44
- Maximum element life: 6 months or 1000 hours
- (1) Accordance with BS 3928:1969. Fully validated to ISO 7396-1, AS 2896 and NFPA 99.
