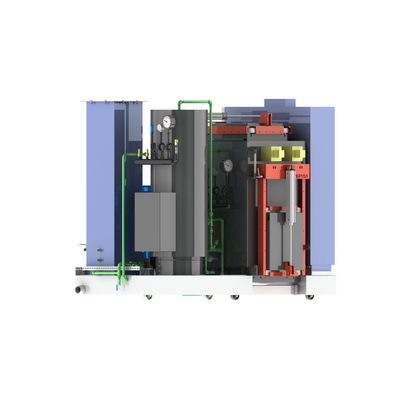

Promed - Model P100 - Medical Waste Sterilization System
The Promed P100 is a medical waste sterilization system optimized for clinics and small hospitals, offering a processing capacity of 35 kg/h (77 lbs/h). The system incorporates multiple stages of sterilization including a shredding phase controlled by a PLC system which features an anti-blocking capability to prevent jamming. The waste undergoes microwave treatment through integrated magnetron units and achieves sterilization with saturated steam at temperatures ranging between 134°C and 138°C. This process significantly reduces pathogenic contamination by 8 Log 10 value. The cooling phase involves cold air injection to safely lower waste temperature, ensuring that the sterile condensed water is discharged efficiently. The system boasts features like automated elevators for easy loading and microwave-induced odor control, made with certification by TUV Austria and adherence to EU Directives and Norms.Most popular related searches
medical waste sterilization system
medical waste sterilizer
medical waste sterilization
medical sterilization system
medical sterilization
medical system
- Compact Design
- Sliding Doors (open and close)
- Fully automated and more efficient
- User-friendly and more user-friendly interface
- Intended hospital use
- Electric steam generator
- Minimized sound
- Minimized odor
- No vibration
- Minimal water use
- No waste water produced
- Easy Mobility (transport)
We are Design and production certified by TUV Austria. Produced according to EU Directives PED (2014/68/EU) 2006/42/EC, 2014/30/EU & EU Norms EN285
- Odor Control System Microwave-induced
- Sterilization Process
- Automatic elevator system for easy loading
Technical Features: Value
Size (L x W x H) (mm): 2400 x 1450 x 1900
Weight (Kg): 2680
Air Pressure (Bar max): 8
Electrical connection required (Kw): 30*
Working Characteristics: Value
Sterilizing Capacity (Kg/ Hour): 25-35
Process Volume Capacity (Lt.): 150
Average Waste Density (Kg/m3): 100 – 150
Average Cycle Time (Min.): 140
Maximum Steam Flow (Kg/Hour): 100
Sterilization Efficiency (SAL): 8 Log10
Consumption / Cycle: Value
Steam (Kg): 7
Electricity (Kw): 1.5**
Water (Lt): None***
Special Consumables: None
* P50 – P100 – P150 includes built in electrical steam boiler
** Electrical consumption of the sterilizer only
*** Water consumption of integrated steam boiler: 7 – 12 Lt./ Cycle
All Systems can be customized to customer specification
