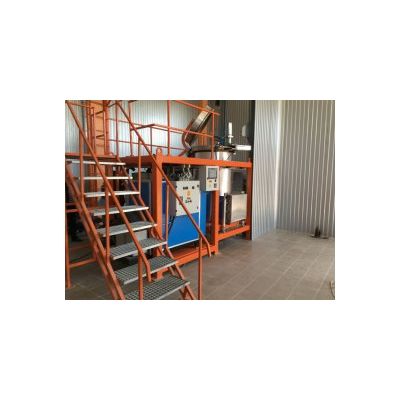

UMB - Model ARI-550 Series - Medical Waste Treatment Machines / Medical Waste Pre-shredder / Medical Waste Pressurized Steam Sterilization

SHARE

ARI-550 Series Medical Waste Treatment Machines specifications; Treatment method : Pre-shredder Type, Pressurized Steam Sterilization. Average Treatment Capacity : 130-150 kg / h. Feed Hopper Volume : 550 liters. Shredded Waste Part of Sterilization Vessel Volume : 290 liters. Waste Feed System : Automatic, Elevator, Electricity, 1.5 kW Motor.

Most popular related searches
medical waste treatment system
medical waste treatment
medical treatment
medical steam sterilizer
medical waste sterilizer
medical waste sterilization
medical sterilization
  1. Shredder Type and Power : 2-shafts, 11 kW
  2. Feed & Discharge Lid Systems : Fully Automatic, With 4 Kw Vacuum Motor
  3. Supporting Lock System for Feed & Discharge Lids : Pneumatic, 3-pistons, Fully Automatic
  4. Duration of One Cycle of ARI-550 : 27-33 minutes
  5. Sterilization Temperature : 135-142 ºC
  6. Sterilization Vessel Heating Method : Pre-vacuum method
  7. Steam Generator Capacity (Electrical) : 125 kg / h
  8. Water Supply Connection : 3/4
  9. Water Consumption (average) : 54 Liters / h
  10. Power Connection : 380 V, 50 Hz, 3-phase
  11. Connected Power (with tolerance factor of 1.6) : 85 kW
  12. Electricity Consumption (average) : 13.5 kWh
  13. Dimensions of complete system, mm (length x width x height) : 2000 x 2400 x 2500 mm
  14. Weight : 5.7 tons
  15. Drying of Sterilized Waste : Vacuum mechanism with 4 kw vacuum motor
  16. Sterile Waste Discharge : Automatically with a wagon going inside the vessel,
  17. PLC, Automation System & Software : Schneider, Siemens, UMB
