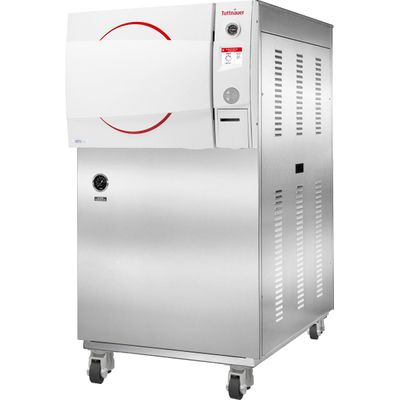

Tuttnauer -Model 3870HSG -Medium Size Chamber

SHARE

Medium size chamber in a mobile autoclave. A free-standing, cabinet enclosed unit is simple and as easy to use as any tabletop autoclave. The 3870 HSG is a hospital grade Class B autoclave, suitable for large medical & dental clinics, and operating rooms. Designed to be a fast cycle sterilizer that is mobile, operates 24 hours a day, and can optionally operate independent of building utilities.

Most popular related searches

medical device regulations

healthcare product

hospital autoclave

medical autoclave

Compact, powerful and reliable : Packed with all the features and reliability of a large capacity autoclave at a fraction of the size and cost.
Easy to use : Multi-colored display and easy 3-button pad to easily browse pre-programmed sterilization cycles and user directories with a built-in alpha-numeric printer
Fast & efficient : Coiled jacket increases overall cycle speed, performance and ensures uniform heat distribution throughout the chamber
Safe : Double locking safety device prevents door from opening at high pressure and high temperature
High quality stainless steel : 316L grade stainless steel chamber and door with electro-polish finish
Rapid air removal : High volume water-ring vacuum pump for fast and efficient air removal
Eeasy to move & install : Mounted on wheels for easy mobility. Connects to utilities with flexible piping for an easy installation

Chamber Dimensions (Ø x L) : 308mm x 758mm
Chamber Volume : 85 Liter
Overall Dimensions (WxHxD) : 720mm x 1365mm x 1180mm
Autoclave Weight : 318 kg
Tray Capacity : 2 Trays
Tray Dimensions (WxHxD) : Small: 286mm x 25mm x 675mm Large: 350mm x 25mm x 675mm
Voltage & Frequency : 3 phase (1ph option available) 208V, 230V, 400V, 440V, 480V 50-60 Hz
Power : 9 kW

Standards

ANSI/AAMI ST-8:2013 Hospital Steam Sterilizers
EN 285: 2006+A2: 2009 - Large Steam Sterilizer
EN 61010-1: 2010 Safety Requirements for measurement control and laboratory use
EN 61326-1: 2013 for EMC Requirements for Electrical Equipment
EN 61010-2-40: 2015 Safety requirements for sterilizers used to treat medical materials
EN ISO 17665-1: 2006 Sterilization of health care products - moist heat

Pressure Vessel

All pressure vessels and boilers are certified according to ASME code section I and section VIII, Div. I and PED 97/23/EC - Pressure Equipment Directive

Quality Standards

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

Directives

93/42/EEC Council Directive concerning Medical Devices
20012/19/EU WEEE & 2011/65/EU RoHS
