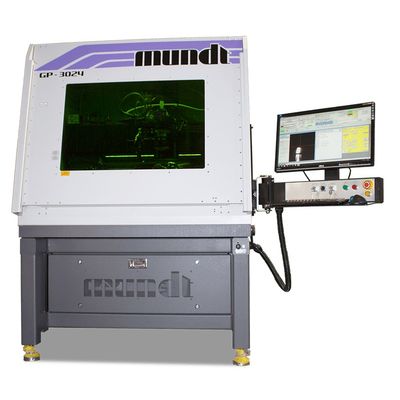

Mundt -Model GP-3024 -Medium Travel Split Gantry Laser Work Station
Essentially a larger version of the GP-1812, the Gp-3024 also has a split gantry with the X & Y Axis positioned on an upper bridge and the Y Axis is located on the base plate. This high precision sturdy workhorse is solid steel and is capable of running product development to operating 24/7 production.
This Standard GP-3024 is built to add additional machine options that can be upgraded in the field.
- A General-Purpose Workstation for manufacturing medium size products
- Available in Class I or Class IV configurations
- Travel & Work Area = 30” X 24” X 12”
| Travel X Axis | 30 in |
| Travel Y Azis | 24 in |
| Travel Z Axis | 12 in |
| Travel Tilt Axis Optional | 135 deg |
| Travel Rotary Axis Optional | Continuous |
| Maximum X Axis Speed | 8 in/sec |
| Maximum Y Axis Speed | 8 in/sec |
| Maximum Z Axis Speed | 5 in/sec |
| Maximum X Axis Speed With Linear Motor | 20 in/sec |
| Maximum Y Axis Speed With Linear Motor | 20 in/sec |
| Maximum Speed Tilt Axis Optional | 120 deg/sec |
| Maximum Speed Rotary Axis Optional Gear Drive | 120 deg/sec |
| Maximum Speed Rotaty Axis Optional Direct Drive | 1000 rpm |
| Accuracy X Axis | +/- .0005 in/ft |
| Accuracy Y Axis | +/- .0005 in/ft |
| Accuracy Z Axis | +/- .0005 in/ft |
| Accuracy X Axis Optional Linear Motor | +/- 5 µm/m |
| Accuracy Y Axis Optional Linear Motor | +/- 5 µm/m |
| Accuracy Z Axis Optional Linear Motor | +/- 5 µm/m |
| Accuracy Tilt Axis Optional | 200 arc-sec |
| Accuracy Rotary Axis Optional Gear Drive | 200 arc-sec |
| Accuracy Rotary Axis Optional Direct Drive | +/- 10 arc-sec |
| Positioning Resolution X Axis | .000016 in |
| Positioning Resolution Y Axis | .000016 in |
| Positioning Resolution Z Axis | .000016 in |
| Positioning Resolution X Axis Optional Linear Motor | 250 nm |
| Positioning Resolution Y Axis Optional Linear Motor | 250 nm |
| Positioning Resolution Z Axis Optional Linear Scale | 250 nm |
| Positioning Resolution Tilt Optional | 3.2 arc-sec |
| Positioning Resolution Rotary Optional Gear Drive | 3.2 arc-sec |
| Positioning Reolution Rotary Optional Direct Drive | 1.8 arc-sec |
| Brushless Servo Motor Control | X,Y and Z |
| Heavy Duty Roller Ways | X,Y and Z |
| Machine Base | 3 in Ground Steel |
| Machine Supports | 4 in Steel Tubing |
| Optional Axes | Up to 12 Axes |
