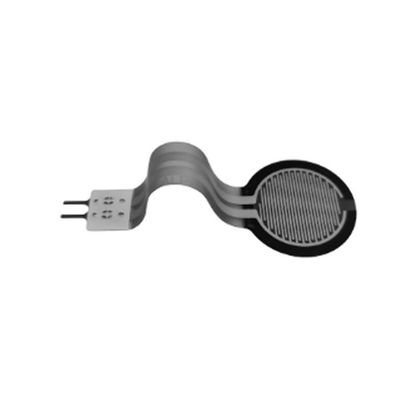

Alpha -Model MF01A-N-221-A12 -Membrane Force Sensor
Application : Wearable, VR Gloves Sensing, Pulse Detection (Medical), Sleeping. Posture Monitoring and many others. Feature : Ultra-thin, Lightweight, textile-like softness, causing minimum interference with physical movement.
Most popular related searches
- FORCE SENSITIVITY RANGE 30g~4000g (0.3N~39N)
- FORCE RESOLUTION Continuous (Analog)
- STAND-OFF RESISTANCE (UNLOADED) > 20MΩ
- FORCE REPEATABILITY (SINGLE PART) 2%
- FORCE REPEATABILITY (PART TO PART) 10%
- RESPONSE TIME < 1ms
- LIFE CYCLE (WITHOUT FAILURE) > 10 Million
- OPERATING TEMPERATURE -30°C to + 60°C
- HIGH HUMIDITY STORAGE +40°C, 95%RH x 96hrs
- HIGH TEMPERATURE STORAGE +60°C x 120hrs
- LOW TEMPERATURE STORAGE -30°C x 120hrs
