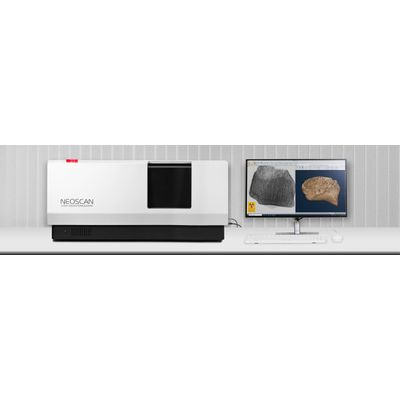

NeoScan - Model N70 - Micro-CT Scanner with Ultimate Performance to Price Ratio
2.5 um minimal pixel size: Detects details down to a couple of microns; High resolution for wide application range, 7MP Flatpanel: Fast scanning with more details in every slice, Fits objects up to 100mm diameter and 220mm length: Generous sample size.
GENERAL
Pixel size at maximum magnification: 2.5 um
True low-contrast 3D resolution
Maximum scanning diameter: 100 mm
Maximum scanning length: 120 mm
Maximum sample length: 220 mm
Size/Weight: 1050W x 607D x 463H mm / 210 kg
Power & control signals for optional in-situ stages: yes
Integrated micro-positioning stage: yes
Active artefact suppression: yes
X-RAY SOURCE
Type: maintenance-free, sealed
Smallest spot size
Voltage: 20-100 kV
Maximum power: 20 W
Automatic filter changer: 12 positions
X-RAY CAMERA
Camera type: 7 Mp active pixel flat-panel
Camera field of view: 140 x 120 mm
Radiation protection: radiation hardened fiber-optics
