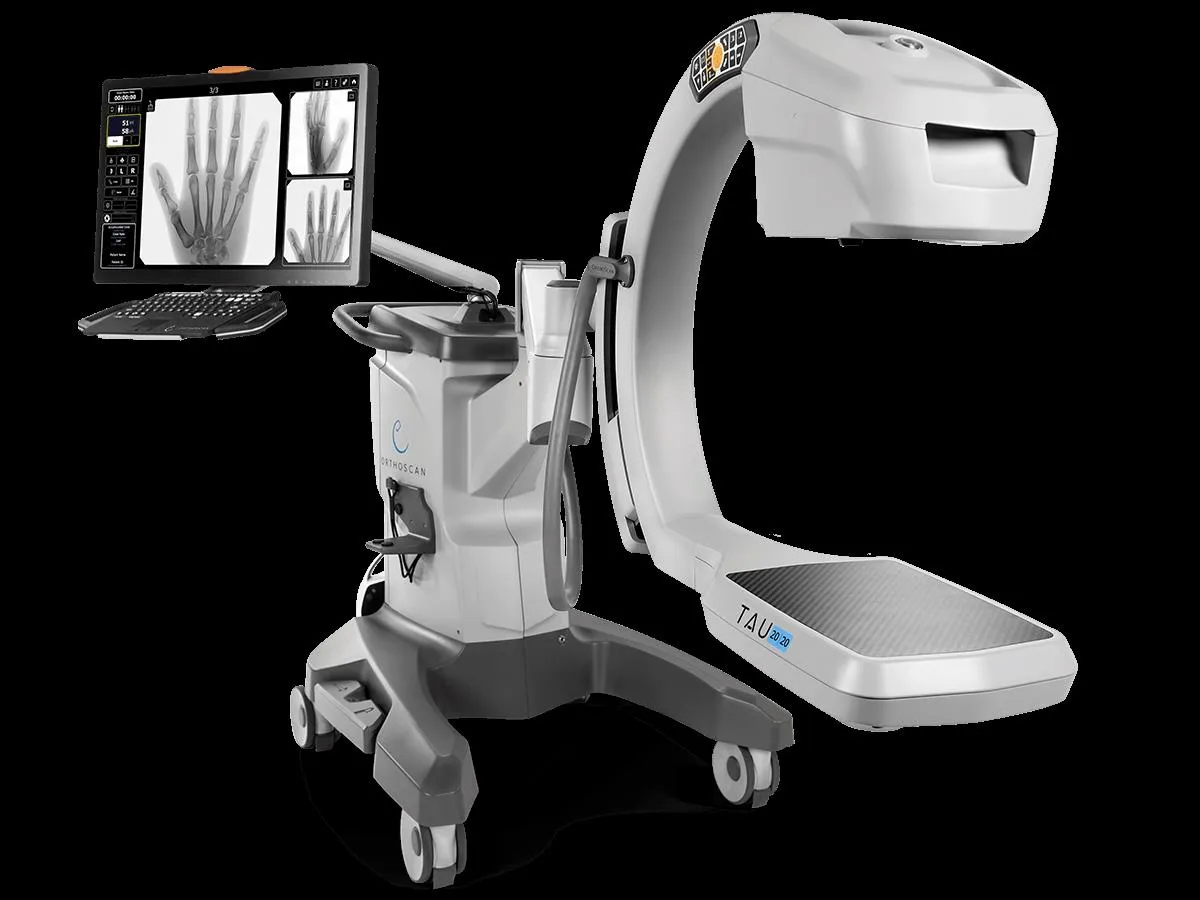

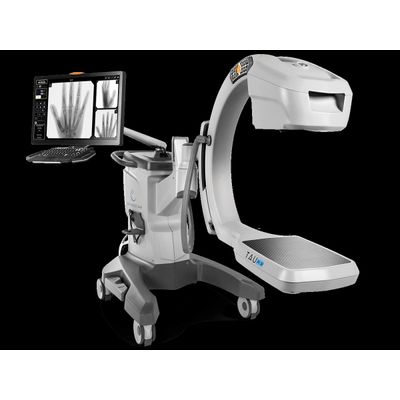

Orthoscan -Model TAU 2020 -Mini C-Arm Imaging System
Blur the lines between mini and full size C-arms. See more with the largest monitor and detector ever available on a mini C-arm. Reach new patients with first-in-class pediatric indication. Work safer with pulsed fluoroscopy and other dose-saving features. Orthoscan TAU 2020. Expand your capabilities with the most advanced mini C-arm on the market.
Anatomy revealed
TAU 2020 introduces the largest screen on a mini C-arm. Experience optimal eye comfort on a hi-bright, 1920 x 1080 resolution monitor.
Powered by Orthotouch 2.0 — the advanced touchscreen interface — with color interface, touch support, anatomical selections, and pediatric software.
Increased visibility provides more information with richer detail to quickly and accurately diagnose patients.
27″
DIAGNOSTIC MONITOR
Orthotouch 2.0
ADVANCED TOUCHSCREEN INTERFACE
13″ x 13″
LIVE IMAGE
Imaging evolved
Over twice the size of detectors found on conventional mini C-arms*, an industry-leading 20cm x 20cm detector takes the potential of the mini C-arm to the next level.
Confirm joint space with accuracy, see fractures in full view, and save dose by minimizing shots so that you can work efficiently. Combined with pediatric indication, image anatomy in ways never before possible on a mini C-arm.
- LED LIGHTSInsufficient lighting during a case can make it challenging to see anatomy clearly. Unique to the Orthoscan TAU family, surgical LED lights provide additional illumination on the anatomy. Eliminate shadows cast from the C-arm and the OR so you can work with certainty.
- STEPLESS COLLIMATORIntroducing the industry’s first motorized collimator in a mini C-arm. With the touch of a finger, infinitely adjust via the touchscreen interface to minimize radiation exposure and reduce patient dose while limiting the area of interest.
- BILATERAL CONTROLSNew backlit controls are easier to see with additional buttons for upgraded functionality.
- C-ARM DESIGNFocus on your case with an increased orbital rotation of 160°, larger arc depth of 20”, and improved umbilical cable. Effortlessly maneuver the C-arm to attain preferred views without stressing your patient’s anatomy.
IMPROVED BILATERAL CONTROLS
New backlit controls are easier to see with additional functionality.
Redesigned from the inside out to reduce service maintenance.
Maneuver your system with ease down hallways, around corners, and in the operating room.
Easy access to the power button and I/O ports directly on top of the chassis.
Protects power cords and other cables from being damaged.
Keep your equipment and data safe in the modern healthcare environment.
Description of common system functions available directly on-screen.
As TAU 2020 closes the gap between mini and full size C-arms, you may wonder which class of device is right for your imaging needs.
Here are three simple advantages TAU 2020 has over full size equipment.
1. Low dose device
By the nature of their design and advancements in dose reduction technology, Orthoscan mini C-arms typically emit significantly less dose than conventional full size C-arms.
2. Easy to use
Orthoscan mini C-arms are all-in-one units designed to be easily positioned and operated by one user. Multiple operators and accessories are not required.
3. Small & portable
True to their name, Orthoscan mini C-arms take up less space in your facility and OR. They are highly portable, making transport between rooms painless.
MECHANICAL
Free space: 13.8″
Weight: 475lb
Height: 48″
Footprint (W x L): 29″ x 33″
Orbital rotation (over rotation): 160°
Pivot rotation: 430°
Lateral rotation (wig-wag): 320 °
Vertical range: 26.5″
Arc depth: 20″
Distance to cabinet: 59″
Distance to wheel base: 45″
Keyboard handles: ✓
DETECTOR
Type: CMOS detector
Detector resolution: 2 k x 2 k
Detector size: 20cm x 20cm
Useful array: 20cm x 20cm
Pixel spacing: 99 microns
Dose rate: AKR / DAP
MONITOR
Display size: 27″ LCD
Primary “live” image: 13″ x 13″
Dual reference image: 6″ x 6″
Brightness: 450 cd/m2
Resolution: 1920 x 1080
Interface: DVI
Arm horizontal reach: 26″
Arm vertical travel: 14″
Arm vertical height: 19″
Arm lateral rotation: 216° + 370° + 200°
Touchscreen: ✓
HDMI (external monitor): ✓
Built-in DICOM calibration: ✓
Color support: ✓
ELECTRICAL
Input power: 90-253 VAC @ 47-63 Hz
Sterile field controls: Bilateral
Multifunction wireless foot switch: ✓
Laser alignment: ✓
Surgical LED lights: ✓
USB 2.0 port: ✓
EMI filter: ✓
X-RAY GENERATOR
Focal spot: 42.5 microns
kV range: 40 – 78 kVp
mA range: 0.040 – 0.160 mA
Operating mode: Pulse / continuous
Selectable pulse rate: Cont, 30, 15, 7.5, 2 pps
Collimator: Stepless (4 leaf, 2 axis)
Pediatric filter: ✓
Magnification mode: ✓
DOCUMENTATION
Wireless communication: Optional
SSD capacity: 64GB
Image capacity: 26,000
Video capacity: 14.4min
Cine loop frame rate: 30 fps
Adaptive noise suppression: Automatic
Manual noise suppression: 3 modes
Cine loop export: ✓
Edge enhancement: ✓
Post process brightness / contrast: ✓
Printer: ✓
DICOM 3.0 compliant: Storage SCU; Worklist SCU; Print SCU; MPPS SCU; DoseSR SCU; Query SCU; Storage Commitment
BRAKES & WHEELS
Braking system: Lock, release, directional
Ground clearance: 4″
PERFORMANCE
Start-up time: 60 sec
Shutdown time: 20 sec
SOFTWARE
Software: Orthotouch™ 2.0
Operating system: Windows 8.1 embedded
Pediatric workflow support: ✓
On-screen measurements: ✓
