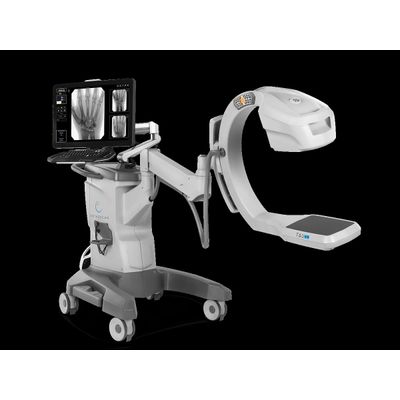

Orthoscan -Model TAU 1512 -Mini C-Arm Imaging System
Designed around your needs, TAU 1512 introduces the next generation of mini C-arms. Exclusive dose-saving features, advanced Orthotouch interface, and improved articulation and arm design are all packaged in a small and light-weight form factor you expect from an Orthoscan mini C-arm. Get the quality and performance you desire in a package to meet any budget.
Anatomy revealed
See more on-screen content with a resolution of 1920 x 1200 in bright detail on a hi-bright 24″ monitor for an immersive work experience.
Powered by Orthotouch 2.0 — the advanced touchscreen interface — with color interface, touch support, anatomical selections, and pediatric software.
Expect exceptional diagnostic imagery with a 12″ x 9.5″ live image to see fine details of anatomy with vivid clarity.
24″
DIAGNOSTIC MONITOR
Orthotouch 2.0
ADVANCED TOUCHSCREEN INTERFACE
12″ x 9.5″
LIVE IMAGE
Small size, big capability
Orthoscan TAU 1512 is engineered from the inside out for durability and mobility in a light-weight frame. Surgeon driven design means navigating restrictive rooms and hallways while compact mode allows for simple storage and transportation.
- C-ARM DESIGNFocus on your case with an increased orbital rotation of 160°, larger arc depth of 20”, and improved umbilical cable. Effortlessly maneuver the C-arm to attain preferred views without stressing your patient’s anatomy.
- BILATERAL CONTROLSNew backlit controls are easier to see with additional buttons for upgraded functionality.
- LED LIGHTSInsufficient lighting during a case can make it challenging to see anatomy clearly. Unique to the Orthoscan TAU family, surgical LED lights provide additional illumination on the anatomy. Eliminate shadows cast from the C-arm and the OR so you can work with certainty.
IMPROVED BILATERAL CONTROLS
New backlit controls are easier to see with additional functionality.
Redesigned from the inside out to reduce service maintenance.
Maneuver your system with ease down hallways, around corners, and in the operating room.
Easy access to the power button and I/O ports directly on top of the chassis.
Protects power cords and other cables from being damaged.
Keep your equipment and data safe in the modern healthcare environment.
Description of common system functions available directly on-screen.
MECHANICAL
Free space: 13.8″
Weight: 475lb
Height: 48″
Footprint (W x L): 29″ x 33″
Orbital rotation (over rotation): 160°
Pivot rotation: 430°
Lateral rotation (wig-wag): 320 °
Vertical range: 26.5″
Arc depth: 20″
Distance to cabinet: 58″
Distance to wheel base: 44″
Keyboard handles: ✓
DETECTOR
Type: CMOS detector
Detector resolution: 2 k x 1.5 k
Detector size: 15cm x 12cm
Useful array: 15cm x 12cm
Pixel spacing: 75 microns
Dose rate: AKR / DAP
MONITOR
Display size: 24″ LCD
Primary “live” image: 12″ x 9.5″
Dual reference image: 5″ x 4″
Brightness: 575 cd/m2
Resolution: 1920 x 1200
Interface: DVI
Arm horizontal reach: 26″
Arm vertical travel: 14″
Arm vertical height: 19″
Arm lateral rotation: 216° + 370° + 200°
Touchscreen: ✓
HDMI (external monitor): ✓
Built-in DICOM calibration: ✓
Color support: ✓
ELECTRICAL
Input power: 90-253 VAC @ 47-63 Hz
Sterile field controls: Bilateral
Multifunction wireless foot switch: ✓
Laser alignment: ✓
Surgical LED lights: ✓
USB 2.0 port: ✓
EMI filter: ✓
X-RAY GENERATOR
Focal spot: 42.5 microns
kV range: 40 – 78 kVp
mA range: 0.040 – 0.160 mA
Operating mode: Continuous
Collimator: Fixed (normal, mag)
Pediatric filter: ✓
Magnification mode: ✓
DOCUMENTATION
Wireless communication: Capable
SSD capacity: 64GB
Image capacity: 26,000
Video capacity: 14.4min
Cine loop frame rate: 30 fps
Adaptive noise suppression: Automatic
Manual noise suppression: 3 modes
Cine loop export: ✓
Edge enhancement: ✓
Post process brightness / contrast: ✓
Printer: ✓
DICOM 3.0 compliant: Storage SCU; Worklist SCU; Print SCU; MPPS SCU; DoseSR SCU; Query SCU; Storage Commitment
BRAKES & WHEELS
Braking system: Lock, release, directional
Ground clearance: 4″
PERFORMANCE
Start-up time: 60 sec
Shutdown time: 20 sec
SOFTWARE
Software: Orthotouch™ 2.0
Operating system: Windows 8.1 embedded
Pediatric workflow support: ✓
On-screen measurements: ✓
