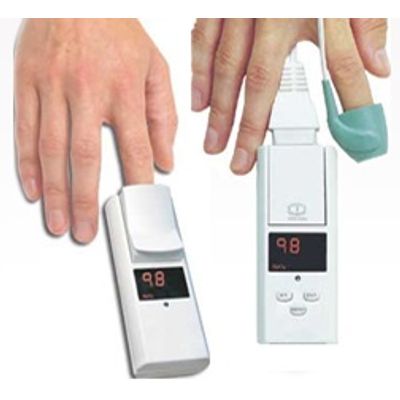

Mediaid -Model M 100 -Mini Pulse Oximeter

• Intended for spot-check monitoring
• Fits into lab coat pocket
• Compact styling
• 2-year warranty
• Multi-sensor versatility - choose from a built-in sensor or the cable adapter module or any sensor with a CompuShield® connector
• Advanced DSP technology

Oxygen Saturation and Pulse Rate

• Display: 3-digit, 7-segment LED
• Resolution: SpO2: 1%
• Pulse: 1 BPM
• Range: SpO2: 20-100%
• Pulse: 25-250 BPM

Accuracy

• SpO2: 100-70% ± 2%
• 69-60% ± 3%
• Less than 60% unspecified
• Pulse: 25 to 200 BPM ± 2 BPM or 2%
• (whichever is greater)
• Above 200 ± 3%
• SpO2 & Pulse: 8 secs. for 80% of the population

General

• Dimensions: 4.73 in L x 1.82 in W x 0.96 in H (12 cm L x 4.6 cm W x 2.46 cm H)
• Weight: 4.1 oz. (113 grams) with Cable Adapter 3.9 oz. (111 grams) with Integral Finger Sensor (weight includes battery)

Power Source

• Battery Type: One 1.5 volt, AA-sized alkaline battery
• Battery Life: Approximately 1200 spot checks (using Duracell® Ultra)
