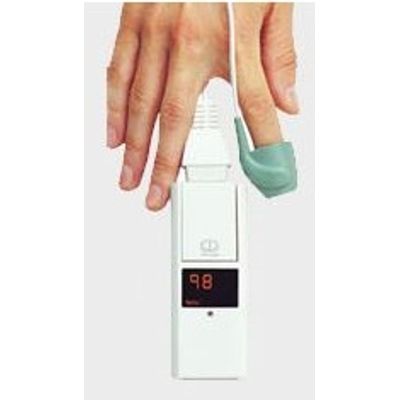

Mediaid -Model 130 -Mini Pulse Oximeter

Oxygen Saturation and Pulse Rate

• Display: 3-digit, 7-segment LED
• Resolution: SpO2: 1%
• Pulse: 1 BPM
• Range: SpO2: 20-100%
• Pulse: 25-250 BPM

Accuracy

• SpO2: 100-70% ± 2%
• 69-60% ± 3%
• Less than 60% unspecified
• Pulse: 25 to 200 BPM ± 2 BPM or 2% (whichever is greater)
• Above 200 ± 3%
• SpO2 & Pulse: 8 secs. for 80% of the population

General

• Dimensions: 4.73 in L x 1.82 in W x 0.96 in H (12 cm L x 4.6 cm W x 2.46 cm H)
• Weight: 4.1 oz. (113 grams) with Cable Adapter
• 3.9 oz. (111 grams) with Integral Finger Sensor (weight includes battery)
• Memory: 30 minutes for single patient or
• 20 patients with multiple readings each
• 11.5 hours overnight sleep screening  :   Power Source
• Battery Type: One 1.5 volt, AA-sized alkaline battery
• Battery Life: Approximately 1200 spot checks (using Duracell® Ultra)

• Intended for spot-check monitoring
• Fits into lab coat pocket
• Compact styling
• 2-year warranty
• Multi-sensor versatility - choose from a built-in sensor or the cable adapter module or any sensor with a CompuShield® connector
• Advanced DSP technology

Model 130 has memory to retain oxygen saturation and pulse rate data, and can operate in three different modes to best suit your needs:

1. Model 130 can retain up to 30 minutes of information for a single patient, making the device ideally suited for treadmill or other long-duration tests
2. Model 130 can also be used in walk-around tests, storing data for up to 20 consecutive patients, tagging each reading with a patient number, time and date
3. Model 130 also includes expanded memory for sleep screening where data can be stored every 5 seconds for up to 11.5 hours
4. Data stored in any mode can be printed or quickly transferred by infrared to a personal computer
