Ystral Gmbh Maschinenbau + Processtechnik
About

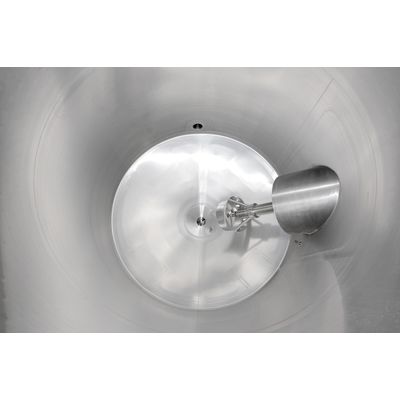

YSTRAL - Model Jetstream - Mixer

SHARE
The YSTRAL Jetstream Mixer is designed for high circulation capacity leveraging the rotor-stator principle, making it essential for effective micro and macro-mixing for consistent product quality across a broad range of applications. It guarantees complete and homogeneous mixing of container contents and achieves cost-efficiency without compromising on the optimum mixing profile or ease-of-use. This mixer is particularly suitable for industries requiring thorough and efficient blending, including chemical production, paint and coating formulation, food processing, pharmaceuticals, and household cosmetics manufacturing. With its advanced technology, users can expect enhanced performance in blending, increased energy savings, and innovative functionalities. This mixer provides technical flexibility with various options for power, voltage, speed, sealing mechanisms, and other customizable features such as diving parts and bearing flanges, making it adaptable to specific process requirements.
Most popular related searches
cosmetic manufacturer
pharmaceutical process
pharmaceutical processes
pharmaceutical processing
operating frame
Power: 0.5 – 55 kW
Voltage: 230 / 400 V, 50 / 60 Hz, custom voltages
Speed: 750 / 1.500 min-1, 1.500 / 3.000 min-1 stepless up to 3,600 min-1 with frequency converter
Seal: Lip seal, mechanical seal single or double depending on application condition
Options: Explosion-resistant design, certificate, qualifications
diving part: Stainless steel 1.4404 (AISI 316 L), special material
Bearing flange: Aluminium (lacquered), stainless steel 1.4404 (AISI 316 L)
  • A fast turning rotor, surrounded by a deflector tube (stator), creates a downward flowing jet that directs fluid stream straight to the bottom of the container.
  • Once at the container bottom, the stream splits and creates an upward flow along the outside wall.
  • At the surface of the fluid stream is redirected towards the container bottom.

  • Effective micro and macro mixing of the complete container contents without air ingress
  • Complete mass transfer across all tank levels through vertical mixing
  • Up to 90% of the energy used is converted into a vertical flow - no rotating container contents
  • Even heavy sediments are suspended via targeted currents
  • Rotating parts are protected against unintended access
  • No vortex formation and no air ingress
  • Tank installation from above or laterally, or operation on the lifting frame
  • Not necessary to secure open containers

High circulation capacity of the rotor-stator principle.

Effective micro and macro-mixing are crucial for achieving consistent product quality in a wide variety of applications. The YSTRAL Jetstream Mixers satisfies all the requirements for complete and homogeneous mixing of the container contents. The YSTRAL Jetstream Mixer proves that cost efficiency, an optimum mixing profile and easy-of-use are not incompatible.
