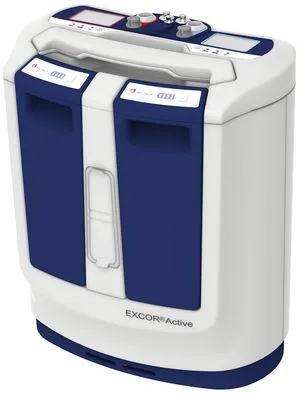

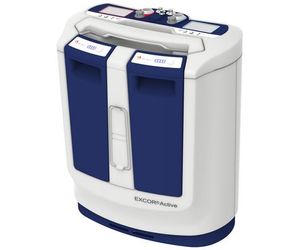

EXCOR -Model Active -Mobile Driving Unit for the Pulsatile Ventricular Assist Device
The mobile driving unit for EXCOR® blood pumps. Small, smart, agile - EXCOR® Active**. The new mobile driving unit for the pulsatile ventricular assist device EXCOR® was developed especially for children with severe heart failure. Small as a hand luggage and with a battery runtime of min. 6.5 hours, EXCOR® Active offers children with heart disease, supported by EXCOR®, more mobility and independence.
- Driving unit as small as a hand luggage, only 15 kg including batteries
- Battery runtime of approx. 6.5 hours even in BVAD mode
- Active flow measurement with custom alarm settings
- Panel PC with user-friendly touch screen
- Different mobilization options for different ages
The new driving unit EXCOR® Active supports all EXCOR® blood pumps and convinces with product features, which are optimally harmonized with one another:
Batteries – Long Battery run time for more mobility
- Long battery runtime at least 5 hours, ~ 6.5 hours for BVAD in children
- 2+2 batteries included for several hours of off-grid operation
- Built-in emergency battery for additional safety
- Easy charging in driving unit or at external battery charging unit
Flow sensor – Active Flow Measurement for more safety
- Active Flow Measurement with ultrasound clamp-on flow sensor designed for EXCOR® cannula
- Full control of pump performance by measuring blood flow
- Alarm if measurement falls below flow alarm threshold (individually adjustable)
- Different sizes to match the cannula diameter optimally
Panel-PC – Simple and user-friendly handling
- Intuitive touch screen
- Data storage in the driving unit (enough for entire maintenance interval)
- Retrieval of data on panel PC at any time

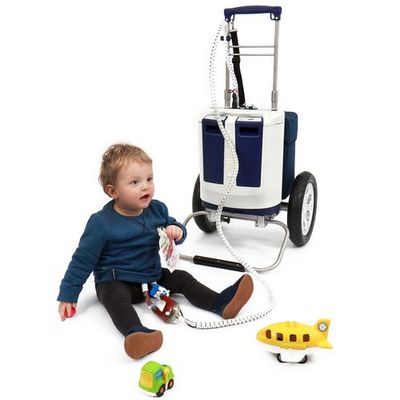

Baby Buggy and Caddy – Mobilization options for every age
- Individualized patient care for children of all age groups and better transport options
- Caddy for the easy transport of the driving unit
- Baby Buggy with two seat options for the smallest (≤ 17 kg)
