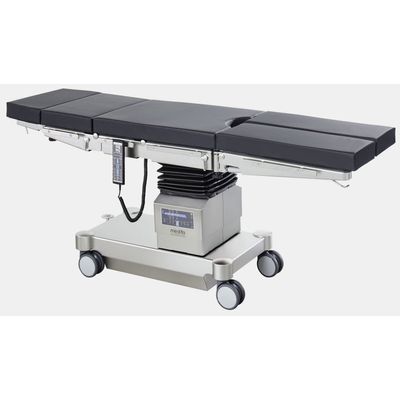

Medifa - Model 601820 - Mobile Electrohydraulic Operating Table
The model 601820 is additionally equipped with an electro-hydraulically adjustable divided back rest. This function allows the kidney elevator to be carried out easily by hand swith or control unit at the column of the surgery table. Furthermore the range of application is extended by a longitudinal sliding of up to 300 mm.
Most popular related searches
Electrohydraulical functions:
- Height adjustment: 690 -1050 mm
- Trendelenburg: -30° / +30°
- Lateral tilt: -20° / +20°
- Back rest adjustment (lower segment): -40° / +70°
- Back rest adjustment (upper segment): -35°/+50°
- Longitudinal sliding: 300 mm
- Flexion: ?
- Kidney bridge: ?
- Simultaneous leveling: ?
- Central brake: ?
- Further information:
- Table length (incl. head- and leg rest): 2080 mm
- Table width: 540 mm
- Table width incl. side rails: 600 mm
- Maximum permissible overall load: 454 kg
- Weight of table: ca. 200 kg
- Power supply: 110 V or 220 V / 50-60 Hz
Basic configuration
- Height adjustment from 690 mm to 1050 mm
- Trendelenburg adjustment from -30° up to +30°
- Lateral tilt up to 20°
- Lower back rest adjustment from -40° up to +70°
- Upper back rest adjustment from -35° up to +50°
- Longitudinal sliding up to 300 mm
- Flex / Reflex position
- Return to 0-position
- Selection of patient orientation (reverse mode)
- Lateral guide rails for attachment of accessories, stainless steel, 25 x 10 mm
- Continuous X-ray tunnel from head- to foot end
- Mobility with central brake
- 5th castor
- PUR (H = 60 mm) or viscoelastic SF (H = 80 mm) upholsteries, electrically conductive, detachable
- Maximum permissible overall load: 454 kg (1,000 lbs)
