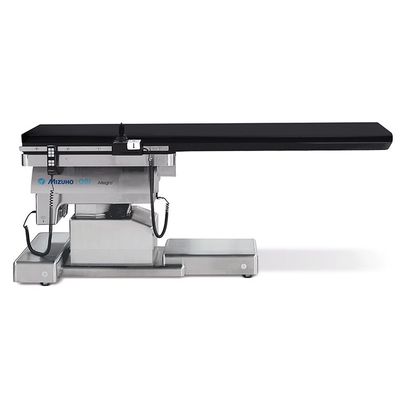

Allegro - Model 6800 - Mobile Imaging Table

A four-way float imaging table for minimally invasive procedures

The Allegro advanced imaging table provides versatile, four-way motorized table-top movement even with a full patient load, eliminating the need to move the top manually.

Product features

• 2-speed joystick controller which mounts on either side of the table for optimal ease of use
• Complete edge-to-edge radiolucency, allowing for excellent C-arm and O-arm^® access
• Radiolucent arm boards facilitate angiographic studies of the arms
• Auxiliary clamp offers 6” (15cm) of side rail for flexible patient positioning on either end of the table
• Swivel mount hand pendant provides flexibility in controlling table functions including X/Y translation of table top
• Stent tray securely supports guide wires, catheters and stents and moves with the table top
• Tempur-Pedic® pads equalize pressure load during surgery to improve support
• Powered floor locks

O-arm® is a registered trademark of Medtronic, Inc.

Specialties

• Orthopedic
• Vascular
• Endovascular
• Cardiovascular
• Pain Management

Warranty
We guarantee our products for a period of one year from the date of shipment from Mizuho OSI for defects in material and workmanship with the exception of products which are misused, altered or damaged.

• Height range: 30–40” (76–102cm)
• Trendelenburg/Reverse Trendelenburg: 15°
• Lateral tilt (roll): 20°
• Motorized, table top travel:
• Longitudinal travel - 21” (53cm)
• Lateral travel - 10” (25cm)
• Table top length: 86” (218cm)
• Table top width: 21” (53cm)
• Clear imaging area: 50” (127cm)
• Total imaging area: 71” (180cm)
• Weight capacity: 450lbs (205kg)

• Tempur-Pedic 2” (5cm) Table Pad
• Joystick Controller, 2-speed
• Hand Pendant with Swivel Mount Assembly
• Standard OR Accessory Rails
• Stainless Steel Shrouded Base
