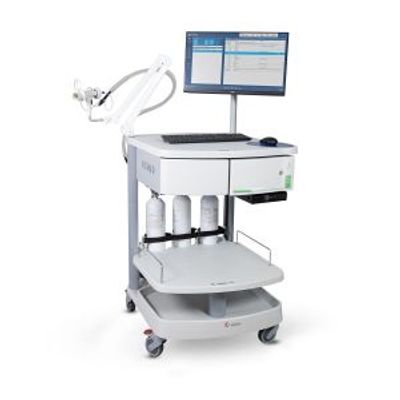

COSMEd -Model Quark PFT -Modular and Compact Pulmonary Function Testing System

True modular design architecture allows to configure Quark PFT according to any kind of requirement. This cost-effective solution gives the opportunity to scale at any time to a more complex configuration.

Low running costs The design architecture has been made to eliminate the procedure of ordinary maintenance and to easily and rapidly solve any technical problem by replacing a board.

Powered by OMNIA, a contemporary, simple and ergonomic software interface with intuitive workflow and hierarchy. OMNIA is based on standard SQL database to store unlimited data securely and guaranteeing lifetime data ownership.

Simplified workflow. OMNIA user interface and its workflow management have been designed to simplify procedures and to reduce testing time.

Quick and easy calibration procedures Quark PFT includes both standard calibration procedures (ie flowmeter and gas sensors) and advanced calibration procedures to verify accuracy, including Pneumotach linearization and verification of all flowmeters (turbine, PNT).

Automatic interpretation of tests based on latest scientific guidelines supported by a powerful algorithm that automatically process results and provides interpretation text strings, including numerical results and graphical data presentation (pictograms).

Network ready: OMNIA is available both as a single stand-alone workstation or in a client/server configuration for small or very large network environments.

Spirometry (Standard)

• Full Spirometry testing (FVC, SVC, MVV, Pre/Post BD)
• Choice of different flowmeter configurations (PNT or turbine)
• User friendly software and advanced features with new generation OMNIA Suite
• Integrated dosimeter for accurate and easy bronchial challenge tests (optional)
• Airway resistance by Interrupter Technique (optional)
• Integrated SpO2 monitor (optional)
• Meet latest ATS/ERS standards

Body Plethysmography (Option)

• All-in-one Testing for Lung Volumes and Airways Resistance
• Large Cabin (873 liters) provides comfort while maintaining High Sensitivity to Volume Changes
• New High Accuracy Pneumotach
• Module provided with Compensation Chamber & TGV Calibrator for Research & Routine Quality Control

Lung Diffusing Capacity (Option)

• DLCO Single Breath (w/ Breath Hold)
• DLCO Single Breath (Intrabreath)
• DLCO 3eq (3 equations method)
• Membrane Diffusing Capacity
• Extremely fast infrared analyzers (CO, CH4)
• Lung volume measurement with DLCO single-breath dilution technique

Nitrogen Washout (Option)

• Functional Residual Capacity (FRC) via multi-breath Nitrogen Wash-out and single-breath 100% O2 techniques
• Lung distribution analysis (LCI, AMDN)
• Affordable alternative to body plethysmography for lung volume measurement
• Simplified ordinary maintenance and calibration procedures

Respiratory Mechanics (Option)

• Indexes of respiratory muscle strength: Maximum Insp-Exp Pressure (MIP/MEP)
• Respiratory Drive (PO.1)
• Quick and non-invasive measurements
• Fully compliant with ATS/ERS Guidelines

Airway Resistance (Option)

• Interrupter technique (Rrs, int)
• High reproducibility and correlation with body plethysmography tests
• Ideal for testing non collaborative, critically ill patients and children
• Simplified test manoeuvre
• Easy to disinfect
• Scientifically validated

Forced Oscillations (Option)

• Total Respiratory Impedance measurement by Pseudo Random Noise Signal
• No cooperation required from the patient
• Ideal for assessing lung function in pre-school children
• Quick and easy assessment (8 seconds tidal breathing)
• Accurate, reliable and reproducible technique

Metabolic (Option)

• Pulmonary Gas Exchange (VO2, VCO2)
• Anaerobic Threshold (AT)
• Resting Metabolic Rate with Face Mask
• Indirect Cardiac Output (Wasserman)
• Integrated Pulse Oximeter (SpO2)
• Optional Integrated 12-lead ECG (GAS/ECG)
• Exercise Gas Exchange with Elevated FiO2 HR Interface w/ external ECG (TTL)
