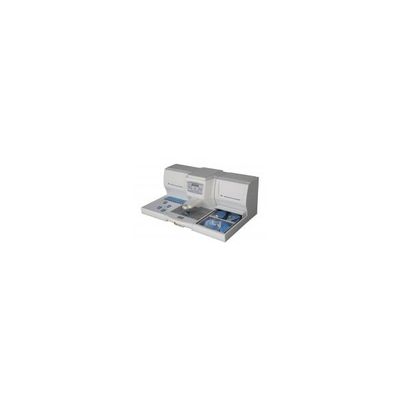

MYR -Model EC 500 -Modular Tissue Embedding Center for Paraffin Blocks
All elements in the modular paraffin embedding center are designed to achieve maximum efficiency and operating comfort.
- 5 liter paraffin reservoir.
- Knob to adjust paraffin flow.
- Paraffin flow can be released manually (touch plate) or via footswitch.
- Adjustable paraffin dispenser paddle to accommodate Mega and Super Mega cassettes.
- Adjustable White LED illumination.
- Eight heated wells for forceps.
- Two built in paraffin trimmer.
- Cold spot integrated into the working surface.
- Two front drawers for surplus paraffin.
- Integrated connector for electrically heated tweezers. Available with 1, 2
or 4 mm tip (accessory). - Magnifying glass (accessory).
Innovative design and functionality for flexible working methods
The heated working surfaces are thermally insulated towards the operator and ergonomically shaped. Spacious, heated working area with a non-glare white LED illumination with adjustable intensity.
Adjustable paraffin dispenser paddle to accommodate Mega and Super Megacassettes. Built-in wax trimmer. Urgent biopsies can be embedded at any time even in “standby mode”.
Versatile configuration for enhanced user-friendliness
Clear, user-friendly keyboard for easy programming and setup of working parameters. An energy-saving function is incorporated,
using an automatic timer that turns on/off via calculations based on the individual pre-heating times.
Ergonomics and functionality for better processing
Two storages of large capacity, independently heated, for molds and cassettes. The paraffin reservoir has a capacity of 5 liters to ensure continuous operation during high workflow. Surplus paraffin is guided into wast
- Large cooling surface for up to 80 cassettes and 60 molds.
- Selectable temperature between 0 and -12º C.
- Even temperature distribution over the entire surface.
- Allow placement on the right or left side of the dispensing console.
- Stand-alone operation possible.
- Methacrylate cover to prevent building up of frost (accessory).
- Accepts baskets from the most common tissue processor of the market.
- High capacity storage, incorporating two removable trays with capacity for two baskets (200 cassettes) or three baskets (300 cassettes) without trays.
- High profile cover for cassette storage.
- Up to 400 mold storage capacity.
- Operation only possible if connected to embedding console.
