OMEGA -Model Series 60 -Mono-flow, Dual-flow Rotary Unions
FromRotary Union

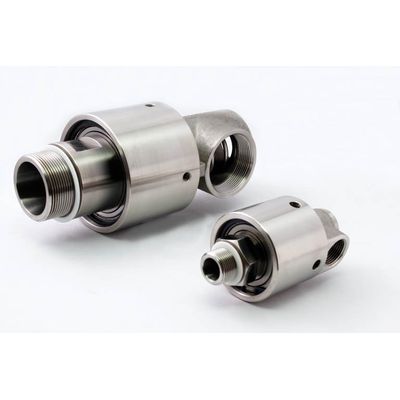

Rigid Rotary Unions - supported on a pair of deep-grove ball bearings. All Stainless steel construction. Rotor, housing and internals all in Stainless steel. Carbon / SiC. Seals for long, trouble free performance. Threaded Rotor as well as Flanged Rotor – Variants available. Extensively used in all Industries including – Steel Plastic, Rubber, Engineering, Food & Pharma, Paper, Printing & packaging and others.
Most popular related searches
| ¼” BSP / NPT to 21/2” BSP/NPT |
| Flanged variants available on demand. |
Series 60:- Mono-flow Rotary Unions
Series 60 D:- Dual-flow Rotary Unions – Fixed Siphon
Series 60 DR:- Dual-flow Rotary Unions - Rotary siphon
| Media | Pressure | Temperature | Rotational Speed |
| Water | 10 bar | 90°C | 2500 rpm |
| Oil | 10 bar | 90°C | 2500 rpm |
| Steam | 1 bar | 100°C | 1500 rpm |
