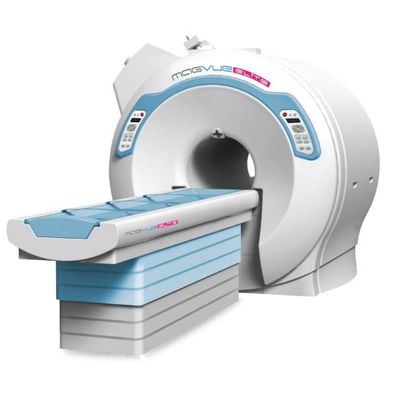

Magvue ELITE -Model 1.5T -MRI Systems
FromMedonica Co. Ltd
Since "Green Technology" is Medonica`s core value, Medonica considers and focuses on the true meaning of Green Activities. As Medonica follows the direction of concept and implication of green activities, human life and health are automatically follows. Medonica`s advanced medical technology.and the efforts from green activities are well combined to have succesful development. Now Medonica presents 1.5T MRI system along with 0.33T. Why is Medonica keep trying on human life and health? So they can step forward to give the best life to the world.
Most popular related searches
- Spine Echo
- Optimized Bandwidth
- Gradient Echo
- Phase Over Sampling
- Dual Spin Echo
- Rectangular Data Acquisition
- Fast Spin Echo (up to 128 ETL)
- Flow Compensation
- Fast Flair, Stir
- Magnetization Transfer Contrast
- 3D Gradient Echo, 3D Fast Gradient Echo •2D/3DSSFP/b-SSFP
- TONE pulse imaging •2D/3DTOF
- Auto Tracking Pre-saturation
- Single Shot Fast Spin Echo (up to 240 ETL)
- Spine Echo
- Optimized Bandwidth
- Gradient Echo
- Phase Over Sampling
- Dual Spin Echo
- Rectangular Data Acquisition
- Fast Spin Echo (up to 128 ETL)
- Flow Compensation
- Fast Flair, Stir
- Magnetization Transfer Contrast
- 3D Gradient Echo, 3D Fast Gradient Echo •2D/3DSSFP/b-SSFP
- TONE pulse imaging •2D/3DTOF
- Auto Tracking Pre-saturation
- Single Shot Fast Spin Echo (up to 240 ETL)
Magnet
- Lcngth:1.4mWCight:410(*g
- 5 Gauss Line: 4.0X2.5m
- LiqukJ Helium Consumption: Zero or < 0.065 liters/hr
- Homogeneity ;i1.0ppm@40cm DSV
Gradient System
- Peak Strength: Max. 35 mT/m
- Slew Rate: Max. 150 mT/m/rro
- Design: Self Shielded
RF System
- Peak Power: 18 kW
- Receive Path: 8/16 channels
- Receiver Bandwidth : 1 MHi
- ADC:16bit,20MHz
Computer System
- CPU: 3.0GHz
- OS :Windows XP w Windows 7
- Memory :> 16GB
Standard P.A Coils (8/16CH)
- Body. Head, Knee. L-Spine, C-Spine(Neck)
- Surfac^GP), Shoulder, Wrist/Elbow
- Pelvic/Abdomen
