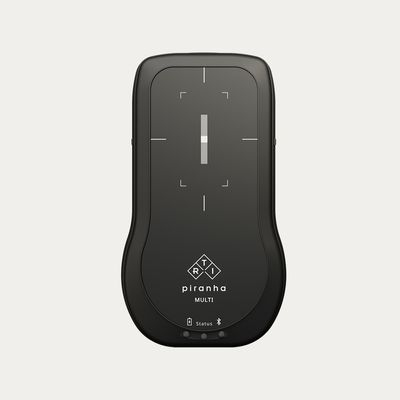

Piranha -Multi X-ray QA Testing Meter
The Piranha MULTI X-ray meter is all you need for qualified diagnostics and QA on Rad/Fluoro, CT, Dental, and Mammography X-ray scans. Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further information. Customize your measurements and reports with Ocean Next™ software.
- All-in-one multifunction X-ray meter
- One-shot HVL
- Solid-state detectors = no need to compensate for temperature & pressure
- Can measure on scanning beams as well as tomosynthesis
- Optimized for X-ray equipment from a large number of manufacturers
- Built-in energy compensation
- Can be used together with ion chambers
- Wide-range detection of total filtration
- 100 meters Bluetooth range
- Automatic recognition of external probes
- Small, compact, & robust – easy to position
- Backscatter protected
- Long-lasting rechargeable battery
- Always free firmware upgrades
- Up to ten-year warranty
- Two-year Calibration Cycle
Included: RTI Dose Probe (calibrated at 70 kV, W/23 mm Al (R2) – for input dose to image intensifiers, scattered and leakage radiation), internal rechargeable battery, internal Bluetooth and USB port, USB cable, Ocean Next™ software with Advantage license, power supply, USB Stick, Soft-Shell transport case, and Basic online training.
Standard two-year warranty/calibration. Read about our pre-paid calibration and extended warranty.
The RTI Piranha MULTI X-ray meter comes ready to use with everything you need. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.
The unique feature of the RTI Piranha MULTI X-ray meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office
Piranha MULTI - general specifications
- Size: 133 x 75 x 26 mm
- Weight: Approx. 400 g
- Display: PC or Windows Tablet
- Software: Ocean Next™ software for X-ray QA
- Database support: Yes
- Interface type: Built-in Bluetooth and USB
- Detector position check: Yes
- Simultaneous dose measurements: Yes - up to two detectors simultaneously
- Use of Dose Detector with Active AEC: Yes - RTI Dose Probe or RTI T20
- Bluetooth range: 100 m free-in-air
- USB cables: Included
- Power source: Rechargeable Li ion battery / Ext. power supply
- Battery life: Approx. 15 hours
- Battery tested: According to UN 38.3
- No. of exposures needed for measurement: One
- Min. exposure time: 0.1 ms
- Memory: Unlimited
- Operating temperature: 15 °C – 35 °C
- Storage temperature: -10 °c - +50°c
- Waveform sampling rate: 4 – 2000 samples/s
- Waveform recording time: 1024 ms – 524 s
- Backscatter protection: Yes - main unit, RTI Dose Probe, and RTI T20
- Warranty: Two years
- Extended Warranty: Up to ten years
- Calibration cycle: Two years
- Standard: Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
- EMC Tested: According to IEC 61326-1:2012
- PTB Approval: DE-17-M-PTB-0070
Piranha MULTI - specifications for Radiography & Fluoroscopy
- Tube Voltage: 35 – 160 kV (±1.5 %)
- PPV: Yes
- Time: 0.1ms – 2000 s (±0.5 % or ±0.5 ms)
- Dose: 1.3 nGy – 1500 Gy. 150 nR – 150 kR. (±5 %)
- Dose Rate: 15 nGy/s – 320 mGy/s (±5 % or ±7 nGy/s), 1.7 μR/s – 37 R/s (±5 % or ±0.8 μR/s)
- Auto Compensation: All dose parameters are automatically compensated for using measured kVp and TF over their specified ranges.
- HVL: 0.72 – 13 mm Al (±10 % or ±0.2 mm)
- Total Filtration: 1.0 – 90 mm Al (±10 % or ±0.3 mm)
- Pulses: 1 – 65535 pulses (±1 pulse)
- Dose/Pulse: 8 nGy/pulse – 0.9 Gy/pulse
- Pulse rate/frequency: 0.5 – 180 Hz
- Pulse width: 4 ms – 2000 s
Piranha MULTI- specifications for Mammography
- Time: 0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
- Dose: 1 nGy – 1000 Gy. 3 µR – 150 kR (±5 %)
- Dose Rate: 25 nGy/s – 530 mGy/s (±5 % or ±12 nGy/s)
- 30 μR/s – 60 R/s (±5 % or ±1.5 μR/s)
- HVL Range: 0.19 – 4.3 mm Al (depending on Target/Filter combination) (±10 %)
- Pulses: 1 – 65535 pulses (±1 pulse)
Piranha MULTI - specifications for CT
- Tube Voltage: 45 – 155 kV (±1.5 %)
- Time: 0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
- Total Filtration: 1 – 90 mm Al (±10 % or ±0.3 mm)
- HVL: 0.72 – 13 mm Al (±10 % or ±0.2 mm)
- Pulses: 1 – 65535 pulses (±1 pulse)
Piranha MULTI - specifications for Dental
- Tube Voltage: 35 – 125 kV (±1.5 %)
- PPV: Yes
- Time: 0.1ms – 2000 s (±0.5 % or ±0.5 ms)
- Dose: 1.3 nGy – 650 Gy. 150 nR – 74 kR. (±5 %)
- Dose Rate: 15 nGy/s – 320 mGy/s (±5 % or ±7 nGy/s), 1.7 μR/s – 37 R/s (±5 % or ±0.8 μR/s)
- Auto Compensation: All dose parameters are automatically compensated for using measured kVp and TF over their specified ranges.
- HVL: 0.72 – 13 mm Al (±10 % or ±0.2 mm)
- Total Filtration: 1.0 – 90 mm Al (±10 % or ±0.3 mm)
- Pulses: 1 – 65535 pulses (±1 pulse)
- Dose/pulse: 8 nGy/pulse – 0.9 Gy/pulse
- Pulse rate/frequency: 0.5 – 180 Hz
- Pulse width: 4 ms – 2000 s
Piranha MULTI - RTI Dose Probe specifications
- Size: 20 x 45 x 7.4 mm, 0.79" x 1.8" x 0.29"
- Weight: 85 g (3 oz)
- Cable length: 2.0 m (6.6 ft)
- Backscatter protected: Yes
- Dose: 100 pGy – 1.5 kGy. 12 nR – 170 kR (± 5%)
- Dose rate: 4 nGy/s – 150 mGy/s (±5 % or ±10 nGy/s). 0.46 μR/s – 16 R/s (±5 % or ±1 μR/s). 26 μR/min – 1000 R/min (±5 % or ±6 μR/min).
- Time: 0.1 ms – 34000 s (±1 % or ±0.5 ms)
- Pulses: 1 – 65535 pulses (±1 pulse)
- Dose per pulse: 1 nGy/pulse – 0.3 Gy/pulse
- Pulse rate/frequency: 0.5 – 100 Hz
- Pulse width: 4 ms - 2000 s
