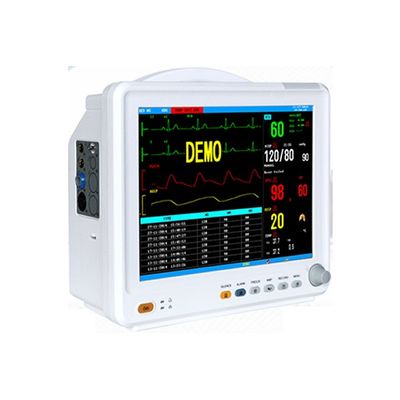

SSMED - Model MAX-69 - Multiparameter Patient Monitor
12.1" Colour TFT LCD display wilh waveforms upto 8 flMWIfh Portable , streamline handle design. Monitor measures from Adult to Neonates Graphic and tabular Trend for 96 hours for all parameters. Mulli Screen format Audible and Visual alarms with adjustable alarm ranges Powerful data management and storage capacity Manual or Automatic NIBP measuring with 500 unit memory. Rechargeable battery backup Weight: 4.5Kg approx.
Most popular related searches
patient monitoring
multiparameter patient monitoring
heart rate
heart rate monitoring
neonatal
patient monitoring system
defibrillation
defibrillator
surgery monitoring
electrocardiogram
- ECG
- 5-Iead or 12-lcad selectable
- Input: 5-lcad: RA; LA; RL; LL; V or R; L; N; F; C
- Lead selection: I; II; III; avR; avL; avF; Vx; CAL
- Gain selection:x0.25,*0.5,x l,*2,auto
- Sweep speed: 12.3mm/s, 25mm/s, 50mm/s
- Accuracy: -Llbpm or±l%, whichever is greater
- Protection: Withstand 4000V AC/501 Iz voltage in isolation against elcctrosurgical and defibrillation Calibration signal: lmV±5% Operation modes: Diagnostic, Monitor, Surgery Heart rate range: Adult: 15-300bpm Paediatrics
- Neonatal: 15-350bpm Measurement range: -2.0mV-2.0mV S-T detection: YES, Arrhythmia analysis: YES Alarm: YES, audible and visual alarm, alarm events recallable
