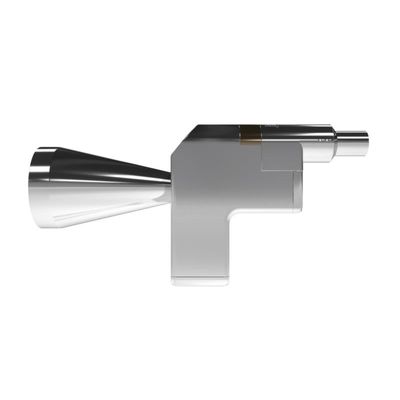

Sciton -Model ZoomScan -Multiple Treatments One Handpieces Device
Achieve Dramatic Results with Sciton’s Full-Field Skin Resurfacing. Here are some benefits of adding ZoomScan to your practice. Customize for every skin concern and skin type. Choose the desired level of resurfacing appropriate for your patients’ goals to reduce the appearance of deep-set wrinkles, rough texture, and scar tissue.
Simply put, if you want the very best resurfacing results, ZoomScan is your solution.
What it is
Adjust for patients’ tolerance for downtime. The recovery time for a ZoomScan treatment can range from 1 to 14 days, depending on the skin’s condition and the depth of treatment. Clients who opt for the lightest peel may have as little as 24 hours of downtime, while those who choose more aggressive resurfacing may need up to 10 days of recovery.
ZoomScan decouples coagulation and ablation for a precise application of each modality.
Other competitive lasers, like CO2, have a fixed ratio of coagulation to ablation, with no way to separate the two. ZoomScan allows providers to dial in the exact response taking into account each patient’s tolerance for downtime, their skin concerns, and desired outcomes.
Variable Spot Size
Select the ideal spot size, either 4mm or 6mm, without changing handpieces.
Total Treatment Tunability
With ZoomScan’s high level of customization, there’s no need for other full-field ablative lasers in the room. Separately choose coagulation and ablation, and your depth, up to 300 microns.
Computer-Controlled Precision
A computer-guided scanner then produces the ideal beam pattern for uniform and rapid treatment, consistent results, and enhanced user confidence.
NanoLaserPeel. The NanoLaserPeel treatment accomplished via the ZoomScan handpiece is a great complement to facial injectables. It’s a short-downtime, light treatment that removes the topmost layer (less then 10um) of skin to restore natural smoothness and provide a vibrant glow. If you want to offer a sophisticated substitute for a chemical peel or microdermabrasion to correct dullness or photo-damage, the NanoLaserPeel can accomplish a precise peel effect with less downtime.
MicroLaserPeel. The MicroLaserPeel is a minimal downtime, light resurfacing treatment limited to the epidermis that evens out skin tone, texture & color, and restores a healthy-looking, youthful glow to the skin. As the skin heals, fresh cells grow and resurface the treated area. The result is healthier-looking skin with reduced wrinkles and improved color evenness. Patients often say that it looks like their skin went from looking tired to vibrant.
Deep Resurfacing. ZoomScan can reach up to 300 microns of ablation per pass, with or without variable depth coagulation. For deep-set wrinkles, rough texture, or scar tissue, Deep Resurfacing is a highly effective treatment for those patients looking to delay or eliminate the need for more invasive procedures.
Technology
LASER TYPE / WAVELENGTH
Er:YAG 2940 nm
POWER (MAX)
40 W
PULSE DURATION
100 μs – 50 ms
DUAL MODE PULSING
Ablate / Coagulate
ABLATION DEPTH
0 - 300 μm
COAGULATION DEPTH
0 - 130 μm
LAPG SCAN AREA
30 x 30 mm
01. Overview
In a single, versatile handpiece, ZoomScan technology offers infinite treatment design options, to achieve the desired outcome and downtime.
02. Treatment Options
ZoomScan employs a dual-mode Er:YAG laser. From a shallow MicroLaserPeel (up to 50µm of ablation) to deep resurfacing (up to 300µm of ablation per pass, with or without variable depth coagulation), ZoomScan gives providers exquisite control over specialized outcomes.
03. Effective Results
Precisely dial in the exact tissue effect desired, from pure ablation to pure thermal and every combination in between.
Using a flat top beam, ZoomScan can deliver proper energy needed across the treated area, allowing tissue to be treated at an optimum fluence with uniformity and safety.
