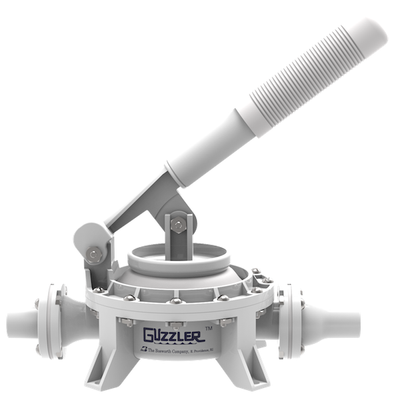

Bosworth -Model Guzzler GH-0400N Series -Natural Delrin Hand Pump
Also called the Guzzler "2400". Versatile hand pump with wetted components made of FDA-approved materials.
Most popular related searches
pharmaceutical process
pharmaceutical processes
pharmaceutical processing
biomedical
pharmaceutical biomedical
- Body & Ports * Natural (Pigment-free) Delrin / White
- Clamp Ring Natural Delrin, Epoxy-coated Aluminum, Epoxy-coated Aluminum with Stop Brackets
- Handle Aluminum: Horizontal/White, Vertical (Removable)/Silver
- Valves * Flapper (White Buna), Umbrella (Silcone**)
- Diaphragm * White (i.e., pigment-free) Silicone
- Clevis/Button Assembly * Natural Delrin (White), All Stainless Steel
- Internal Spring * None, Lightweight, Standard, Heavy-Duty (all stainless steel)
- FDA-approved components for parts in contact with fluid
- Ideal for pharmaceutical, food processing or biomedical applications
- Accommodates 1/2" to 1" hose
- 10 GPM
- Clamp ring adjusts to 12 different handle orientations
- Optional aluminum clamp ring for added durability
- Max Pressure 15 psi / 1.03 bar
- Lift 12.0 ft / 3.7 m
- 22.0 ft / 6.7 m with check valve
- Head 30 ft / 9.1 m
- Capacity (@90 strokes/min) 10.0 gpm / 37.9 lpm
- Volume per stroke 0.44 qt / 0.42 l
- Max Service Temp 220° F / 104° C
- Handle Style: Horizonal/White
- Valves: Flapper (White Buna)
- Diaphragm: Silicone
- Clevis/Button Assembly: Delrin Plastic
- Clamp Ring: Delrin Plastic
- Inlet Hose Connection: 1" Smooth
- Outlet Hose Connection: 1" Smooth
- Internal Spring: None
- Pre-Pak Accessories: Not selected
