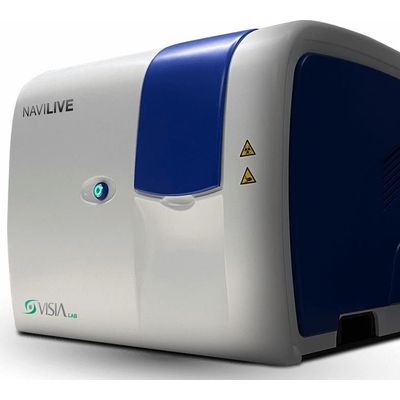

Navilive - Automated Digital Microscope System
The NAVILIVE is an automated system, it scans the whole slide in order to produce the digital slide. It is a digital microscope and allows to review the digital slide (or at least the entire scanned area). The NAVILIVE has remote function that allows to share the live viewing and the digital slides between meeting participants. In pathological anatomy, the slide is fully digitized by the system and made video-usable for detailed diagnosis and evaluation. The acquisition procedure involves a first setting phase through a guided path (wizard), differentiated by type of slide.
-
Most popular related searches
Product Details
The images acquired by scanning the slide can be navigated with a real virtual microscope. The operator can browse the image, use the editing tools available, enter their diagnosis related to the case and generate reports.
The software management system also allows efficient organization of the acquired slides, making the search quick and the navigation of the image functional.
The system can operate both locally and intranet / internet, thus allowing the sharing of databases between multiple users and the navigation of cases remotely through simple web access.
This tool therefore has numerous additional applications such as consultancy, teaching, quality control and decentralization of diagnosis.
NAVILIVE is an automated system composed by a fully motorized brightfield microscope equipped with an external PC station (with the controlling software) and color monitor.
The remote management through a specific feature allows the user to use the live microscope, the scanner and the virtual microscope from a remote location, for a Live TelePathology and Second Opinion purposes.
In pathological anatomy, the slide is fully digitized by the system and made video-usable for detailed diagnosis and evaluation.
Features
- Fast preview
- Equipped with: 4X, 10X, 20X and 40X
- The device automatically detects the specimens on the slide and it determines the scan areas
- The user can change the scan areas
- The user can change the scan profile
- The user can stop scanning the slide
- The system shows the scan progress status
- At the end of the scan, the system displays a message to the user asking if he wants to start a new scan or open the acquired slide
- When the device reads a barcode, retrieves the slide info from LIS (if configured)
- When the scan is completed, the device send the report to the LIS (if configured)
- The user can add or change the focus points
- The device can perform tissue analysis on scanned area
